Stair Tread Steel Plate

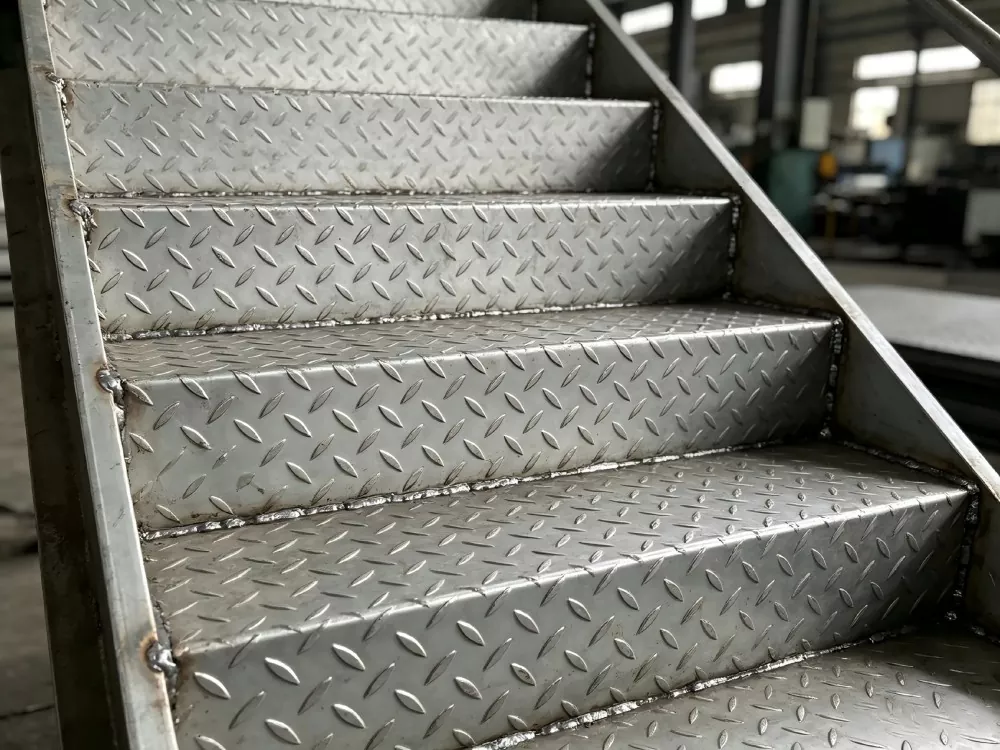

A stair tread plate is the horizontal step surface of a steel staircase. It is almost always made from checkered plate or serrated bar grating, chosen for its anti-slip surface. The plate is cut to the step width and depth, welded to the stair stringers, and finished with galvanizing or paint.

Stair treads are safety-critical components. A wet steel stair without anti-slip surface is an accident waiting to happen — in factories, on fire escapes, and on roof access stairs where weather exposure makes surfaces slick. The stair tread steel plate breaks the water film underfoot and provides the friction that keeps workers and inspectors upright.

The right surface finish is a climate decision: indoor stairs in dry factories do fine with painted checkered plate; outdoor fire escapes in coastal cities need hot-dip galvanizing or stainless to avoid rust streaks within a year. We match the finish to the environment, and tell you honestly when galvanizing is the economical choice.

Product Specifications

Key Features and Benefits

Anti-Slip Coefficient ≥ 0.6, Even When Wet

The diamond pattern delivers a friction coefficient of 0.6+ — and critically, it stays effective in wet and oily conditions where flat steel drops below safe levels. On outdoor stairs, the pattern also drains rainwater quickly, reducing icing and puddle hazards.

Cut Exactly to Your Stair Geometry

We cut treads to your exact width and depth from your stringer layout — square, angled, or with notched corners. Your installation crew welds or bolts pre-fitted treads; no on-site cutting, no wasted plate.

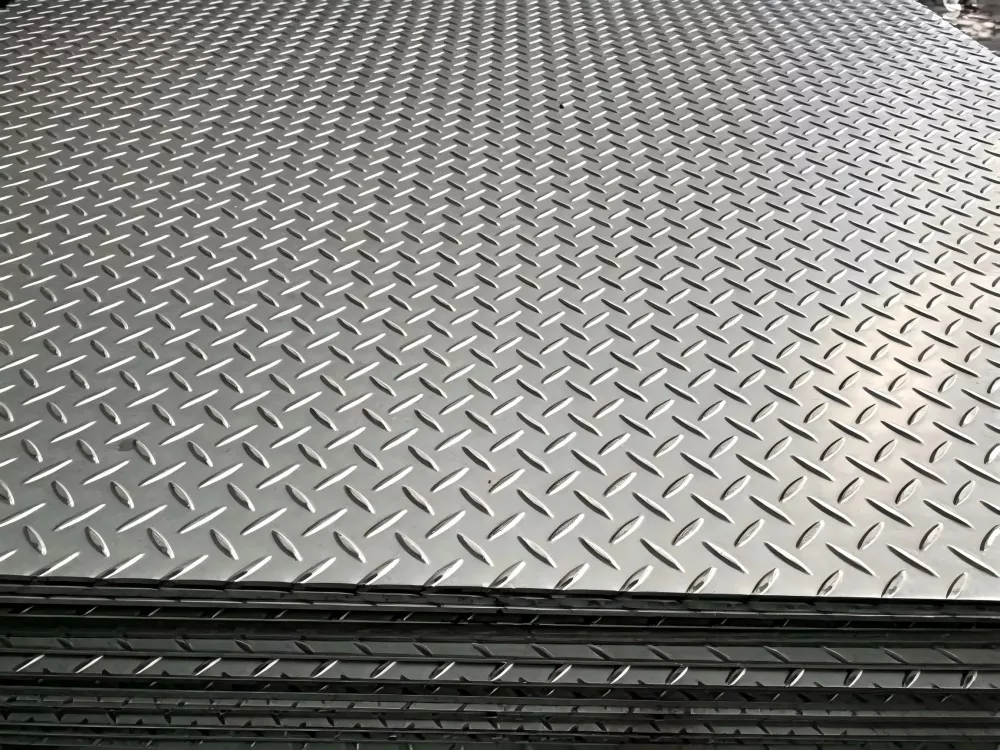

Integral Pattern, Nothing to Wear Off

Because the pattern is rolled into the steel during production — not applied — the anti-slip surface lasts the life of the tread. No glued grip strips to replace, no painted-on texture to wear through.

Built for Continuous Foot Traffic

4–6mm stair tread steel plate carries continuous pedestrian traffic without deflection on standard stair stringer spacing. For stairs serving heavy equipment access, 8mm Q355B handles fork truck and pallet jack crossings.

Compliance-Friendly Documentation

Material certificates and load data accompany every order, supporting your project's safety documentation and inspection sign-off.

Typical Applications

As a stair tread steel plate manufacturer and supplier, Sanhe Steel supplies treads in bulk at factory-direct pricing for:

Industrial factory stairs and mezzanine access

Fire escape stairways and emergency exits

Roof access stairs and plant room platforms

Warehouse and logistics racking stairs

Public infrastructure stairs — pedestrian bridges, rail platforms

Ship and offshore platform companionway steps

Case: Exterior Emergency & Inspection Staircase Upgrade for a German Logistics Center

Location: Hamburg, Germany

The Challenge: Frequent rain and humid weather made the original smooth metal treads slippery and prone to ice buildup, posing high slip hazards during night shifts.

The Solution: Replaced with ASTM A786 Galvanized Diamond Plate Treads. Features a 6mm base plate with serrated anti-slip nosing, installed via pre-drilled bolt connections to avoid on-site welding.

Production Process

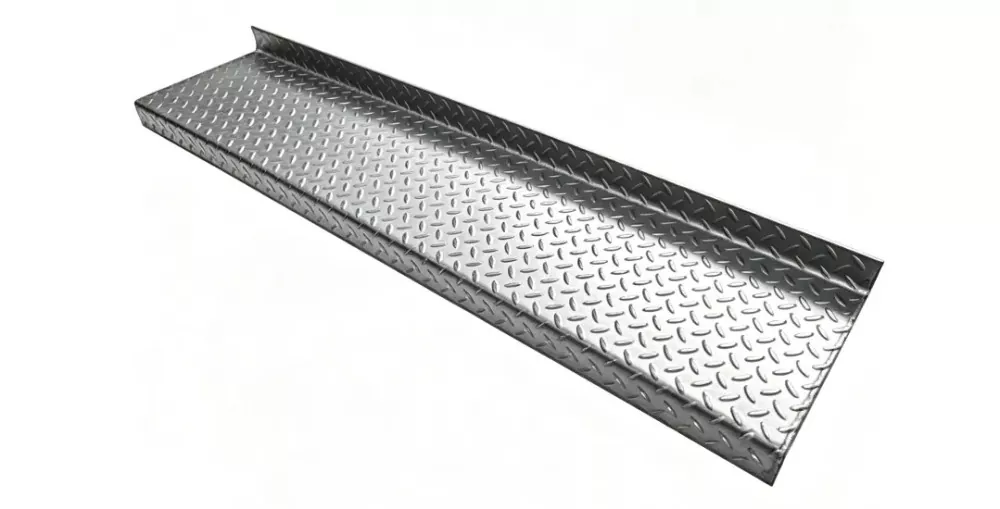

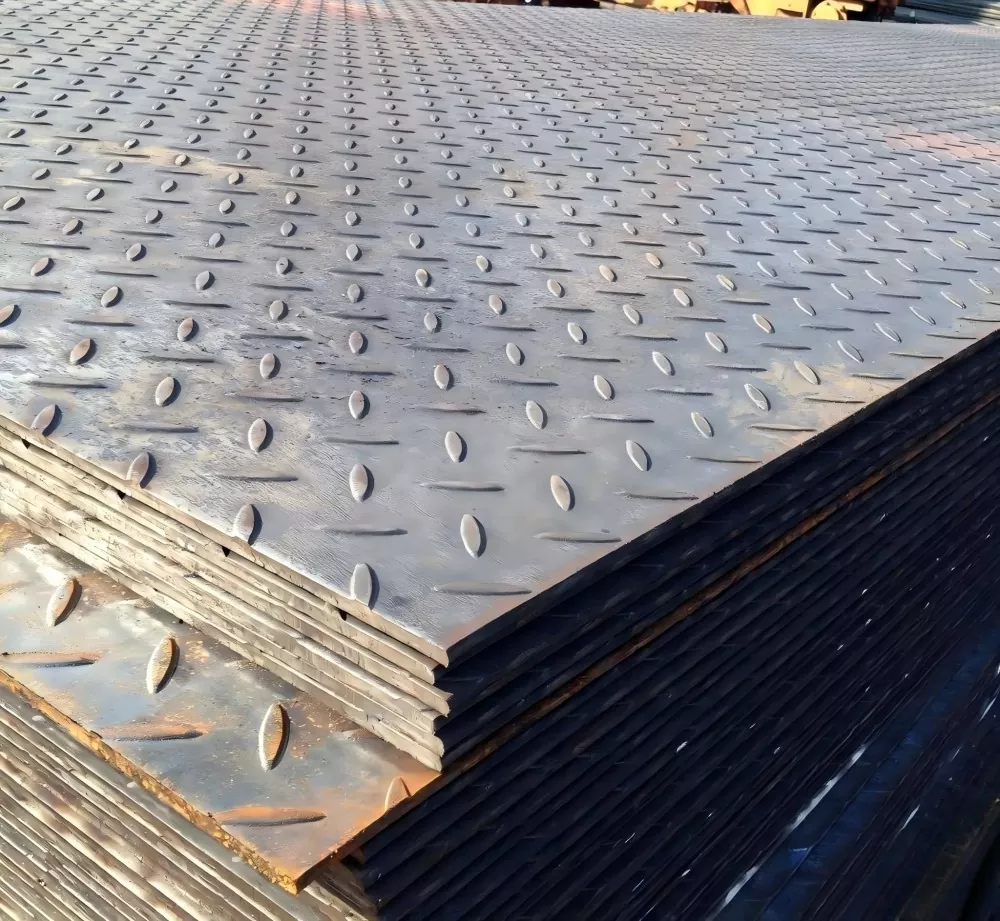

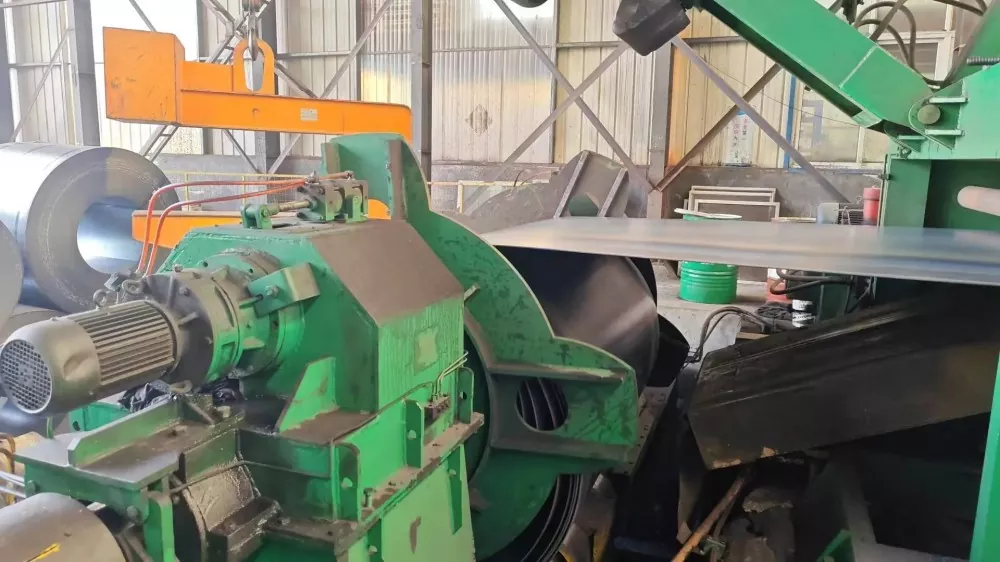

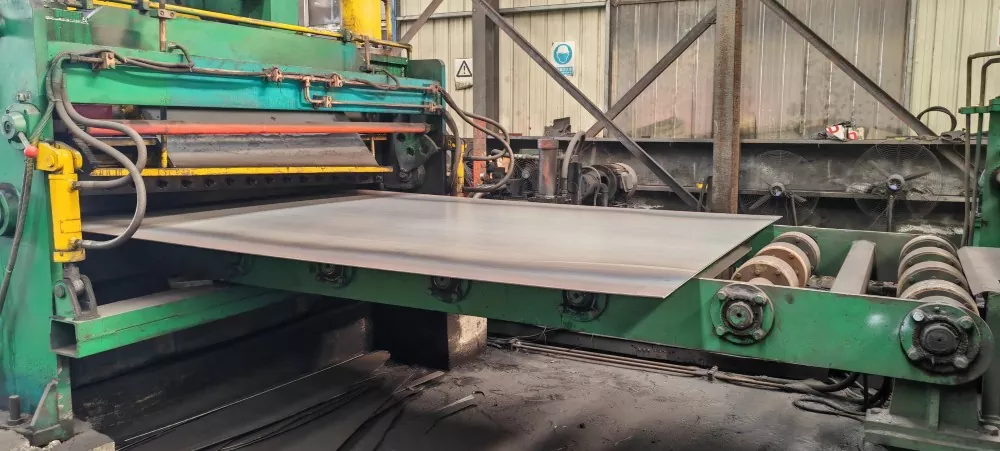

Stair treads start as hot-rolled checkered plate from our mill partners. At our Jiaozhou facility, plates are leveled, then CNC-cut to your exact tread dimensions — including angled cuts and corner notches for stringer fits. Nosing bends (for a rounded front edge) are formed on press brakes.

Fixing holes are drilled per your detail, and edges are deburred for safe handling. Treads are then galvanized, painted, or oiled per specification. Each batch is checked for dimension, pattern height, and finish quality before packing.

Packaging & Shipping

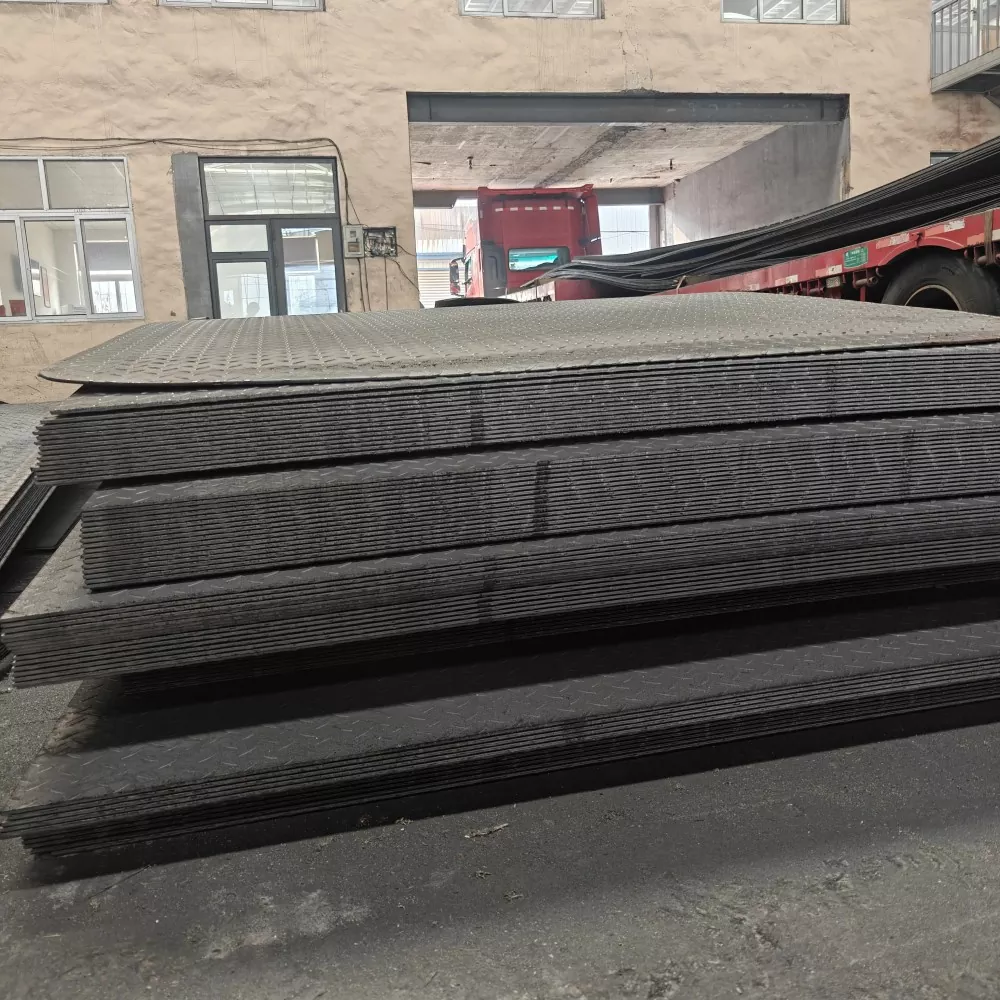

Treads are stacked flat with interleaving protection, banded on skids with edge guards. Container loading at Qingdao Port; FCL/LCL or breakbulk. Terms: FOB, CIF, CFR, DDP. Payment: T/T, L/C, D/P. Documentation: Commercial Invoice, Packing List, B/L, Certificate of Origin, Mill Test Certificate. For stair tread steel plate prices, bulk orders, or a quotation, contact our export team.

FAQ

Q: What thickness do stair treads need?

A: 4–5mm Q235B is standard for pedestrian stairs on normal stringer spacing. For heavy-traffic industrial stairs or stairs crossed by equipment, use 6–8mm Q355B. We will confirm based on your span and load.

Q: Do you supply complete stairs or just treads?

A: We supply treads and flat plate for stringers, angles for framing, and handrail material — everything for a stair tread steel plate stair. For complete fabricated stair assemblies, we can coordinate with fabricator partners.

Q: Galvanized or painted for an outdoor fire escape?

A: Galvanized. Outdoor fire escapes live through rain, sun, and salt air — painted mild steel needs repainting every 2–3 years and rusts at cut edges first. Galvanizing (≥85μm) gives 20+ years with zero maintenance.

Q: Can you match my existing stair drawings?

A: Yes — send us your stair layout or tread detail and we will cut to exact dimensions, including angled treads, notched corners, and nosing bends.

Q: What certificates do you provide?

A: Mill Test Certificate with every order, EN 10204 3.1 on request, and third-party inspection support. Test reports include mechanical properties and coating thickness.
