AR500 Steel Plate

Product Feature

1. Careful production with strict raw material selection

Sanhe Steel control every quality check step from raw material picking, processing to forming. We put full care into every piece so you can buy with complete peace of mind.

2. Stable performance and easy operation

Sanhe Steel make these plates with premium production processes and multiple processing steps. They feature long service life, steady reliable performance and simple operation for users.

3. Full size range and custom service available

Sanhe Steel keep large stock of standard sizes in warehouse. We also make custom sizes based on your drawings or sample requests.

Specification Detail

Sanhe Steel Success Case

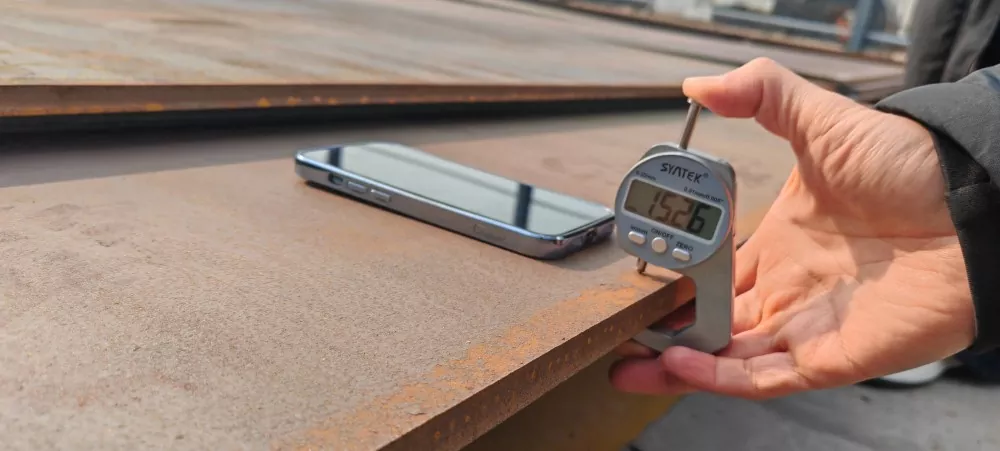

The north american client placed an order with us last year, which included AR500 steel plates at a special thickness of 15.26 mm. Before this order, our maximum production thickness for steel plate only reached 9.7 mm. If we turned down this special request due to technical limits, we would lose the whole overseas order. To win this high-value order and challenge our own manufacturing ability, the team at Sanhe Steel decided to take on this project.

Sanhe Steel’s engineers fully tracked all details of the 15.26 mm plates, including thickness, dimensions, design, chemical composition and production processes. After strict lab tests, all mechanical indicators of our newly developed thick steel plate, such as yield strength and tensile strength, fully matched the client’s standards. Today, Sanhe Steel can mass produce 15 mm steel plates smoothly.

Chemical Composition Range

The steel is grain-refined to improve toughness and impact resistance. Exact composition may vary by manufacturer to meet target hardness and mechanical properties; always refer to the official MTR for certified, batch-specific values. AR500 is not intended for secondary heat treatment; properties are achieved via quenching, and will degrade if exposed to temperatures exceeding 250°C.

Application

Ship Construction and Industrial Trade: Used for cargo hold liners, bulk carrier bins, and heavy-duty conveyor systems to endure the abrasive friction of raw materials.

Automobile Industry and Machine Building: Widely utilized in manufacturing heavy-duty truck beds, excavator buckets, and wear-resistant components for industrial machinery.

Construction Industry: Applied in concrete mixers, aggregate hoppers, and heavy-duty protective structural parts to prolong equipment lifespan.

Aerospace Manufacturing: Implemented in ground support equipment, specialized tooling, and test fixtures that require exceptional surface hardness and impact resistance.

Thickness and Dimensional Specifications

The typical production ranges for AR500 cut-to-length plates and heavy plates from advanced steel mills are outlined below.

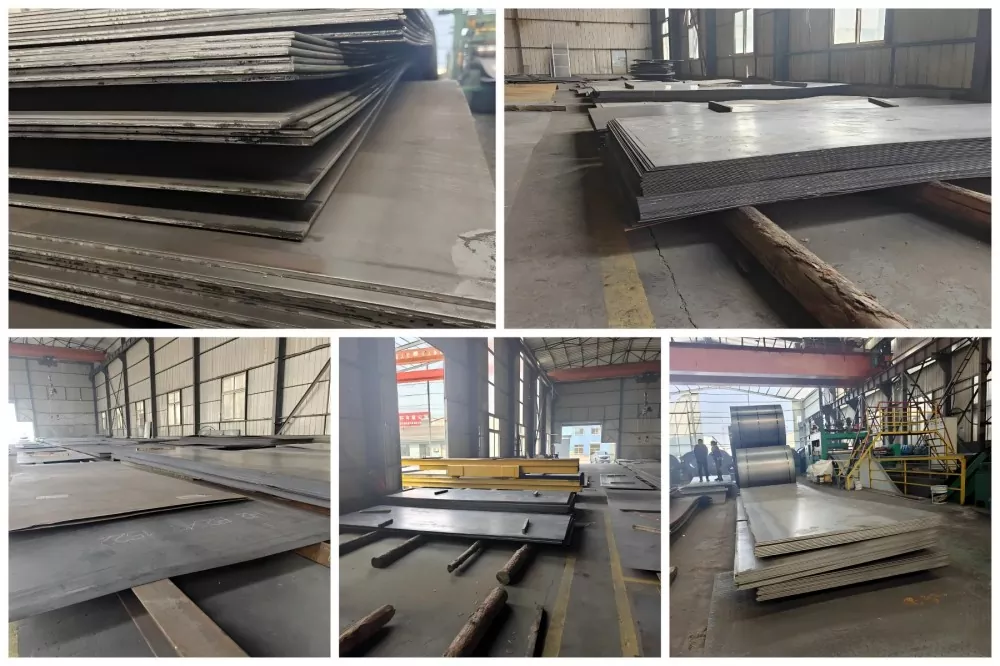

Product Real Photo

Sanhe Steel Company Introductuon

Qingdao Sanhe Steel Co., Ltd. is a company dedicated to the production and sales of steel products. In this land where history and modernity intertwine, we blend traditional manufacturing techniques with modern technology to craft metal products of exceptional quality. Over the years, our unwavering commitment to quality has earned us high recognition from a wide range of customers. Sanhe's steel plates are not merely cold and hard materials. They are integrated with life, art, and technology, providing robust support for a multitude of buildings, projects, and creative endeavors.

Company Advantages

1. We supply undergoes multiple inspections, ensuring quality. Sanhe offers customized cutting services for various types of hot-rolled, cold-rolled, galvanized and color-coated steel plates. The AR500 steel plate come in multiple specifications and meet precision standards.

2. Customers can freely choose the desired product size and specifications.

3. Dedicated logistics for direct freight delivery to your designated location.

4. The entire production line is capable of producing specified specifications and can be customized according to demand.

5. Undertake engineering orders and provide customized services.

After-sales service

Provide quality product after-sales guarantee, quickly handle quality-related issues based on the warranty documents; assist customers in completing the acceptance process, and promptly deliver all the documents such as material lists and certificates; the after-sales team responds 7×24 hours, solving subsequent problems such as logistics and usage compatibility, establishing a long-term customer follow-up mechanism, and continuously optimizing the service experience.

FAQ

Q1: What does AR500 stand for?

A1: AR500 refers to a wear-resistant steel grade. The number 500 represents its minimum Brinell hardness level for strong anti-abrasion performance.

Q2: Can I get steel plates with custom width and length?

A2: Yes. We accept custom cutting based on your drawings, samples or exact dimension requests.

Q3: What mechanical data can you provide for AR500 steel plates?

A3: We can offer official test reports covering yield strength, tensile strength, Brinell hardness and chemical composition.

Q4: Can you offer extra surface processing on steel plates?

A4: We support cutting, drilling, bending, welding, mirror finishing and film lamination as secondary processing.

Q5: How do you pack steel plates for sea shipment?

A5: We wrap each plate with protective film first, then fix them in strong wooden crates to avoid scratches and damage during long transport.

Q6: What is the minimum order quantity for steel plate?

A6: For standard specifications in stock, the minimum order quantity is 5 tons. For custom thickness or special dimensions, the minimum is 20 tons. We also accept sample orders of 1-2 pieces for trial purposes.

Q7: What is the delivery time for AR500 steel plate?

A7: Stock size plates can be loaded within 5-7 working days after deposit confirmation. Custom thickness or special processing orders require 10-20 working days depending on quantity and specifications.

Q8: Can this steel plate be welded without special treatment?

A8: Welding AR500 requires low-hydrogen electrodes and proper preheating (typically 150-200°C). We recommend qualified welding procedure specifications (WPS) for critical applications to prevent hydrogen-induced cracking.

Q9: What is the hardness range ?

A9: The Brinell hardness of AR500 typically ranges from 470 to 530 HBW, with 500 HBW as the minimum guaranteed value for most specifications.

Q10: What standards do your steel plates comply with?

A10: Our AR500 steel plates are manufactured in accordance with ASTM A514 Grade B, EN 10025-6, and GB/T 24186. Full material test certificates (MTC) are provided with every shipment.
