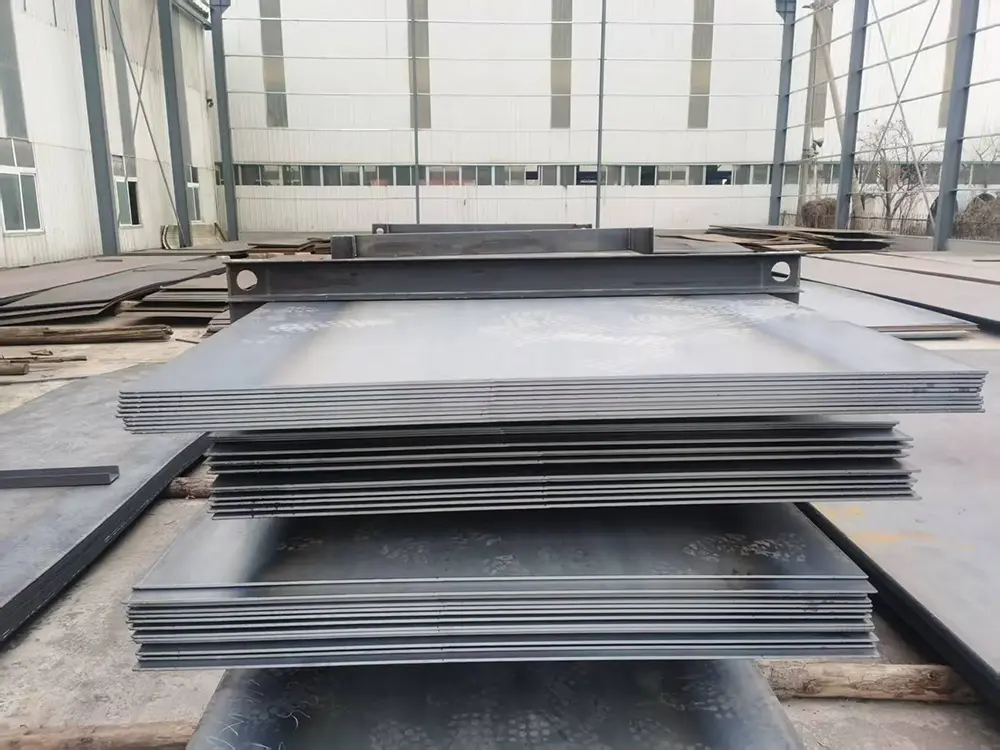

A36 Steel Plate

Sanhe Steel A36 Steel Plate is a carbon structural steel plate produced in accordance with ASTM A36/A36M standards. As a widely used medium thick plate material in the industrial field, it has become the preferred structural material for industries such as construction, bridges, and machinery manufacturing worldwide due to its stable mechanical properties and excellent processing adaptability. We control the entire process from raw material selection to finished product delivery, ensuring that each batch of A36 Plate meets international standards, balancing strength, plasticity, and toughness, and can adapt to the structural load-bearing requirements of various complex working conditions.

This steel plate is based on low-carbon components, with a carbon content strictly controlled below 0.25%. It is matched with precisely proportioned alloy elements such as manganese and silicon, while strictly controlling harmful impurities such as phosphorus and sulfur. This not only ensures structural strength, but also greatly improves processing performance such as welding, cutting, and bending. Unlike the performance fluctuations of ordinary carbon steel, Sanhe Steel A36 Steel Plate undergoes standardized heat treatment and refined rolling, resulting in uniform and dense internal grains without defects such as internal cracks or interlayers. It can maintain stable structural stability under long-term loads, low temperature environments, and dynamic impacts, and is the "safety cornerstone" of various engineering structures.

As a professional steel manufacturer in China, we have been deeply involved in the Steel Plate field for many years. With advanced production equipment and mature process systems, we can provide customized products of different thicknesses, widths, and lengths to meet customers' full scenario needs from small components to large-scale projects. Whether it is conventional industrial processing, high standard building structures, or marine engineering support, Sanhe Steel A36 Steel Plate can provide solid support for project implementation with reliable quality.

Application Field

A36 Steel Plate, with its balanced comprehensive performance, covers multiple core industries worldwide, with specific scenarios as follows:

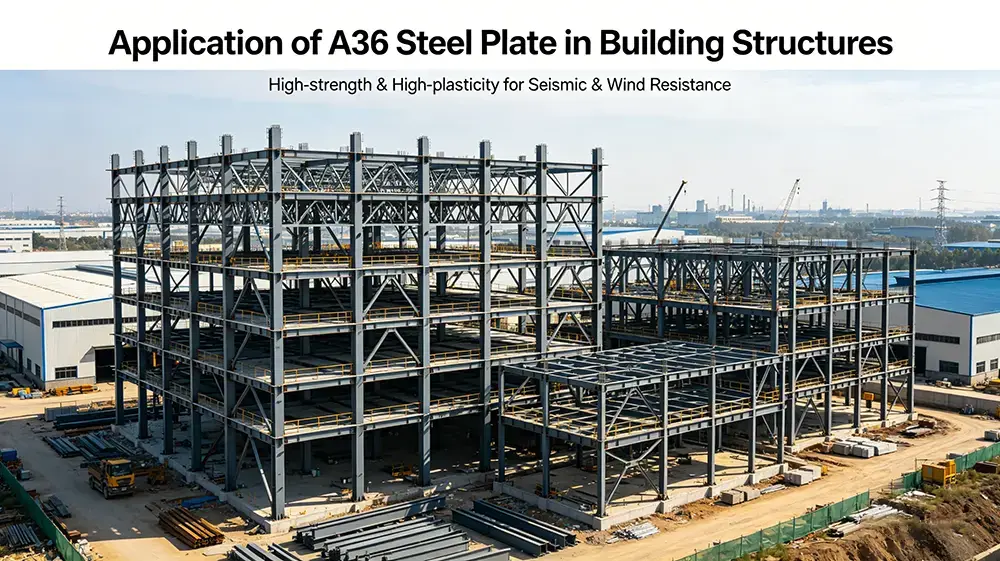

Architectural engineering: The beams, columns, trusses, and floors of high-rise buildings, load-bearing structures of industrial plants and warehouses, and steel frame structures of various civil buildings rely on the high strength and high plasticity of A36 Steel Plate to ensure the overall seismic and wind resistance performance of the building.

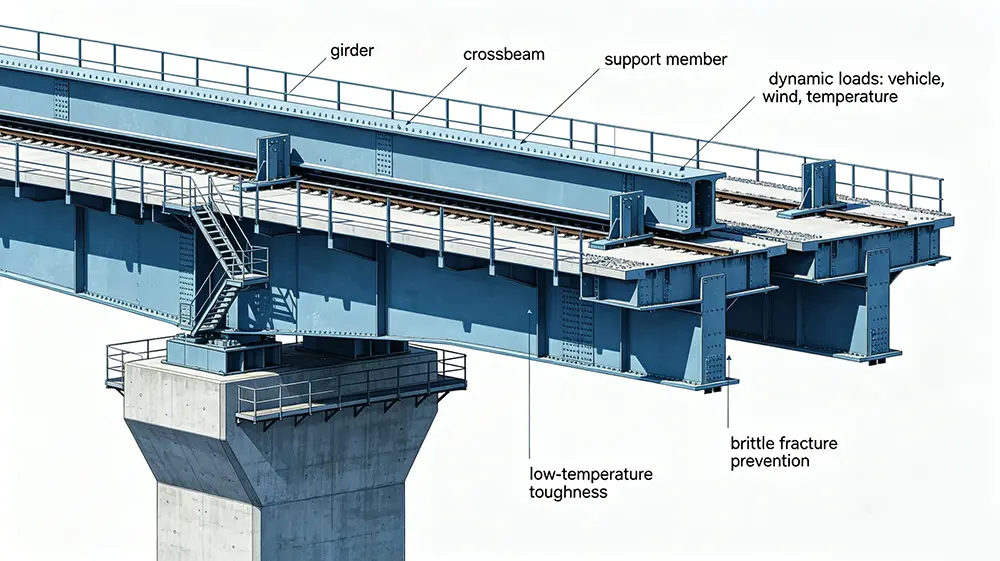

Bridge construction: The beams, slabs, crossbeams, and supporting components of highway and railway bridges are designed to meet the dynamic requirements of long-term bearing of vehicles, wind loads, and temperature differences, while maintaining good toughness at low temperatures and avoiding the risk of brittle fracture.

Mechanical manufacturing: structural components such as machine tool bases, vehicle chassis, bearing seats, gear blanks, etc., suitable for various mechanical processing such as cutting, drilling, stamping, etc., to meet the strength and wear resistance requirements for long-term operation of equipment.

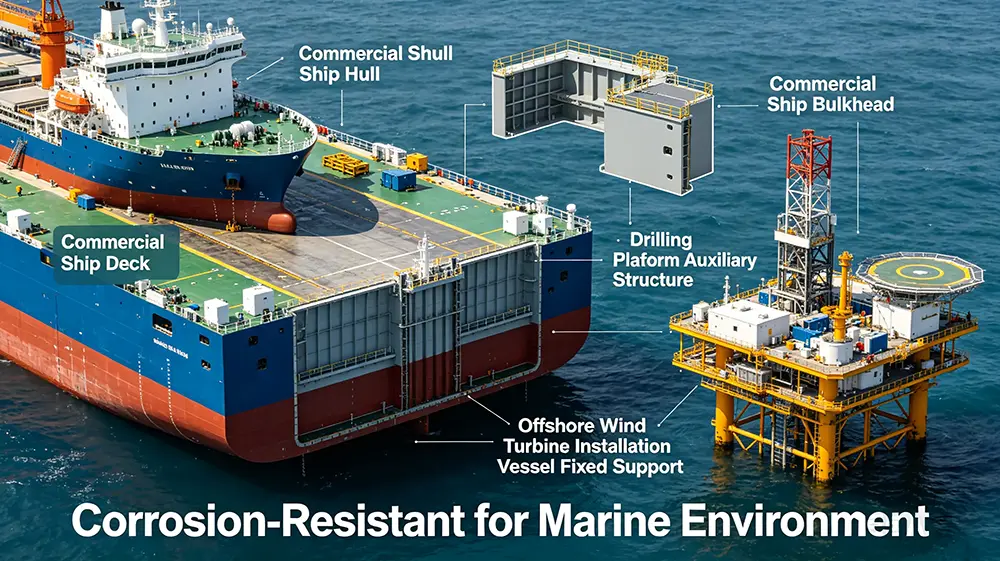

Ship and Ocean Engineering: Commercial ship hulls, decks, bulkheads, offshore wind power installation ship fixed brackets, drilling platform auxiliary structures, can adapt to seawater corrosion environments after anti-corrosion treatment.

Other industrial scenarios: petrochemical storage tanks, pipeline supports, mining equipment components, storage shelves, etc., balancing cost and performance, becoming the preferred material for general structural components.

Specification Parameters

Product Advantages

1. Stable performance and strong adaptability

Sanhe Steel A36 Steel Plate has uniform mechanical properties, with yield strength, tensile strength, elongation and other indicators better than the lower limit of the standard. It balances strength and toughness, and can withstand both static loads and dynamic impacts. It is suitable for differentiated needs in various fields such as construction, machinery, and ships, without the need to adjust material selection according to different scenarios.

2. Outstanding processing performance, reducing construction costs

The low-carbon composition gives A36 Steel Plate excellent weldability, suitable for all conventional welding processes such as MIG, TIG, and manual arc welding. Thin plates do not require preheating, while thick plates have low preheating temperatures, reducing welding process costs; At the same time, it has excellent bending, stamping, and cutting performance, small processing deformation, and easy precision control. It can be directly used for component forming, shortening the project processing cycle.

3. Controllable quality and stable delivery

From continuous casting slab raw materials to hot rolling, finishing, and testing, standardized control is implemented throughout the entire process. Each batch of Steel Plate undergoes ultrasonic testing, mechanical performance testing, and chemical composition analysis to prevent the outflow of non-conforming products; Relying on large-scale production lines, we can quickly respond to bulk orders and customized needs, ensuring stable delivery for global customers.

4. Outstanding cost-effectiveness, suitable for large-scale applications

As a universal carbon structural steel, A36 Steel Plate is much cheaper than alloy steel, and its performance meets the needs of the vast majority of industrial structures. Combined with the advantages of large-scale production of Sanhe Steel, it further optimizes costs and is a cost-effective choice for large-scale engineering and mass component production.

5. Customized services that meet customer needs

We can provide customized cutting, shot blasting, painting, galvanizing and other deep processing services based on customer drawings, reducing on-site processing steps for customers; At the same time, provide technical support to optimize the material selection and processing plan of Steel Plate for special working conditions (such as low temperature and marine environment), and improve project adaptability.

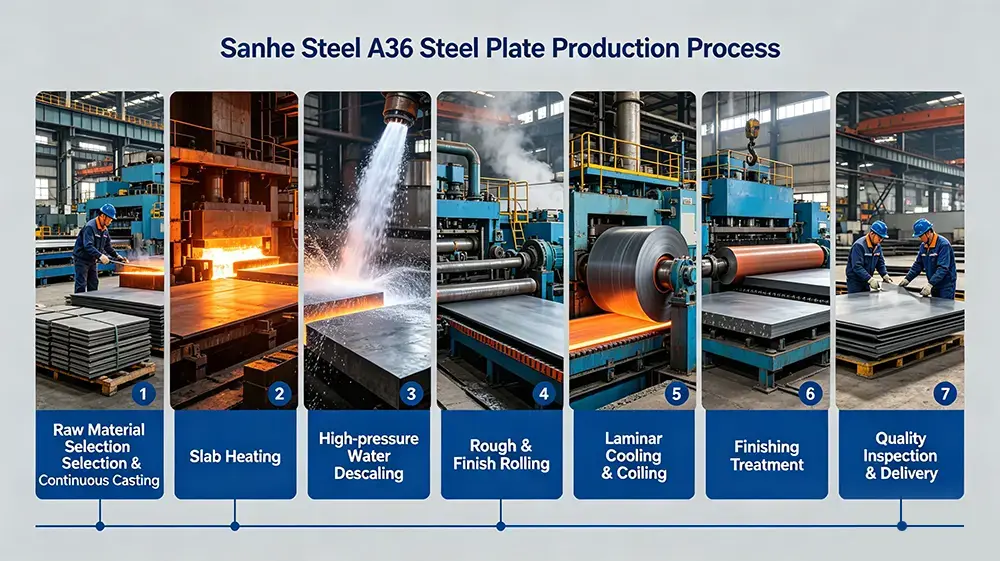

Sanhe Steel Production Process Flow

1. Raw material selection and continuous casting: High quality molten iron and scrap steel are selected as raw materials, which are smelted in an electric furnace and refined outside the furnace. The chemical composition is precisely controlled to ensure that elements such as carbon, manganese, and silicon meet the standards and reduce impurities such as phosphorus and sulfur; Subsequently, uniform and dense slabs are produced through continuous casting technology to avoid internal defects and lay the foundation for the quality of A36 Steel Plate.

2. slab heating: The continuous casting slab is fed into a stepper heating furnace and accurately heated to 1150-1250 ℃. The intelligent control system ensures uniform slab temperature (temperature difference ≤± 15 ℃), eliminates internal stress, and provides suitable temperature conditions for subsequent rolling.

3. High pressure water descaling: After heating, the slab is sprayed with 18-22MPa high-pressure water to completely remove the surface oxide scale, ensuring the surface smoothness of A36 Plate and avoiding surface defects caused by the pressure of oxide scale.

4. Rough rolling and precision rolling: Rough rolling uses reversible rolling to thin the slab from a thickness of 200-250mm to an intermediate slab of 30-60mm, crushing the as cast structure and refining the grain size; Subsequently, it enters the precision rolling mill and uses AGC automatic thickness control to accurately control the thickness of the steel plate (tolerance ≤± 0.1mm), while adjusting the plate shape to eliminate wave and ladle defects.

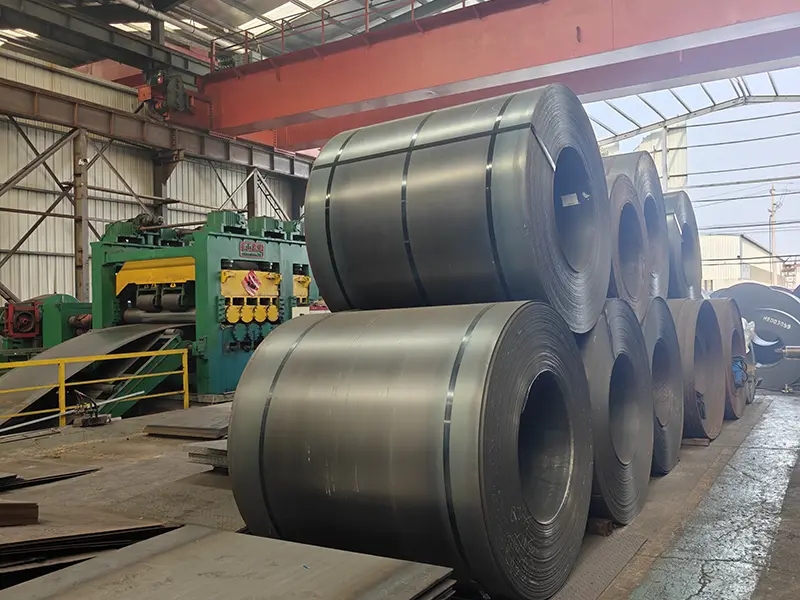

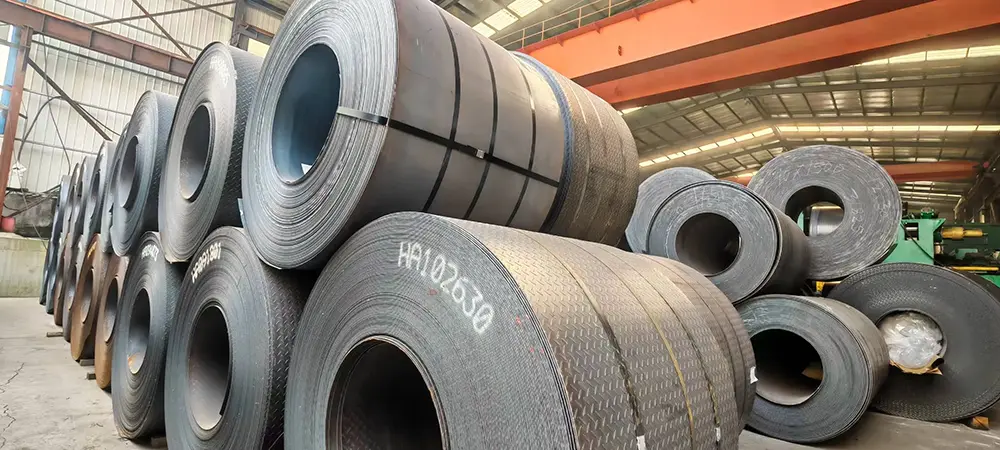

5. Laminar cooling and coiling: After precision rolling, the steel plate is rapidly cooled through a laminar cooling system according to process requirements, with controlled cooling rate and fixed uniform grain structure to ensure stable mechanical properties of A36 Steel Plate; After cooling, it can be coiled into steel coils or directly cut into fixed length steel plates.

6. Finishing treatment: Steel coils undergo processes such as cutting heads, tails, edges, straightening, and leveling to eliminate shape defects and improve dimensional accuracy; The fixed length steel plate undergoes flatness correction and surface cleaning to ensure that the external dimensions and surface quality meet the standards.

7. Quality inspection and delivery: Each batch of A36 Steel Plate undergoes ultrasonic testing (to detect internal defects), mechanical performance testing (yield strength, tensile strength, elongation), and chemical composition retesting. After passing the inspection, it is marked with specifications, batch numbers, and inspection marks, and packaged according to customer requirements before delivery.

FAQ

Q1: What is the difference between Sanhe Steel A36 Steel Plate and the national standard Q235B steel plate?

A: The performance of the two is similar, but A36 Plate follows the American standard ASTM A36, with stricter control over phosphorus and sulfur impurities (P ≤ 0.04%, S ≤ 0.05%), and better weldability and low-temperature toughness; Q235B complies with national standards, with slightly wider impurity content standards and slightly lower costs. A36 is more suitable for export projects and high standard engineering, while Q235B is suitable for domestic conventional scenarios.

Q2: What is the maximum thickness that A36 Steel Plate can produce? How long is the customization cycle?

A: Sanhe Steel A36 Plate has a regular thickness of 4-200mm, and can be customized with extra thick plates of 200mm or more for special needs; Regular specifications in stock can be delivered within 3-5 days, while customized specifications (special thickness, cut to length, deep processing) can be delivered within 7-15 days, subject to adjustment based on order quantity.

Q3: Can A36 Steel Plate be used in low-temperature environments? What is the minimum temperature tolerance?

A: Okay. A36 Plate has excellent low-temperature impact toughness, and conventional products can adapt to -30 ℃ environment; If lower temperature (below -40 ℃) working conditions are required, a low-temperature toughness optimized version A36 Plate can be customized to improve low-temperature brittle fracture resistance through process adjustments.

Q4: After purchasing A36 Steel Plate, can processing support services be provided?

A: Okay. Sanhe Steel provides one-stop deep processing services such as cutting to length, shot blasting, painting, galvanizing, drilling, bending, etc. Customers can directly provide drawings, and we deliver finished components after processing, reducing on-site processing steps for customers.

Q5: Does the welding of A36 Steel Plate require special welding materials?

A: No need. A36 Plate has excellent weldability and is compatible with conventional E43 series and E50 series carbon steel welding materials, without the need for specialized welding materials; When welding only thick plates or at low temperatures, preheating according to specifications is sufficient, with simple operation and low cost.

Q6: How to ensure the quality of A36 Steel Plate? Do you have any relevant certificates?

A: We follow the ASTM A36 standard throughout the entire process, and provide material certificates (including chemical composition, mechanical properties, and inspection reports) for each batch of products. We can cooperate with third-party testing (such as SGS, BV) for acceptance to ensure that the quality of A36 Plate meets international standards.
