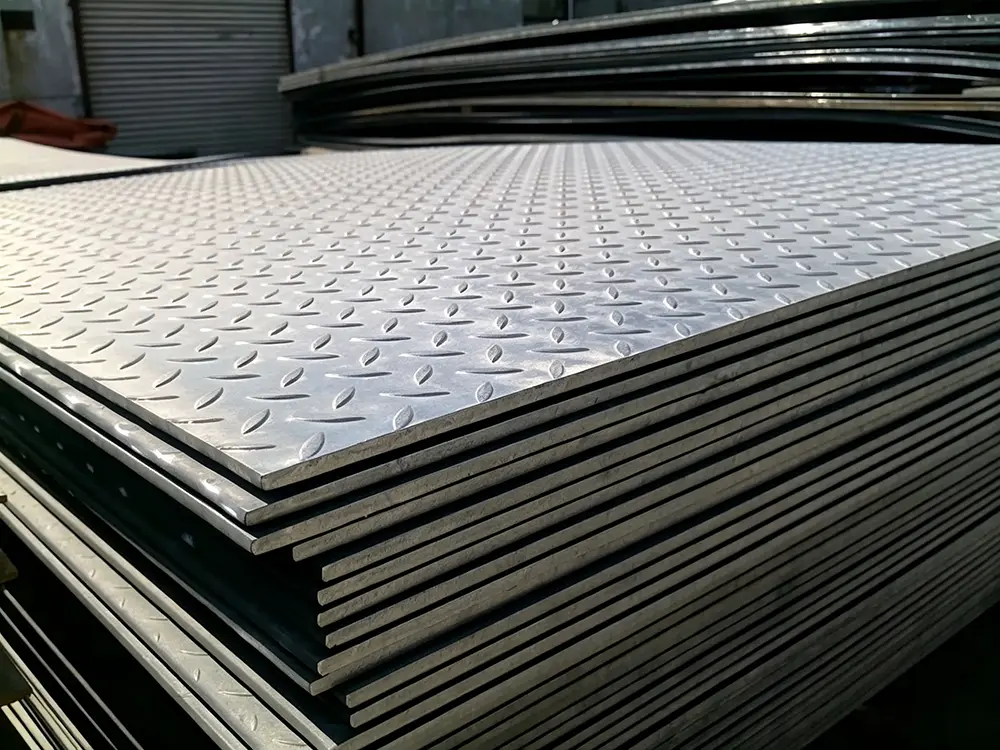

Mild Steel Checkered Plate

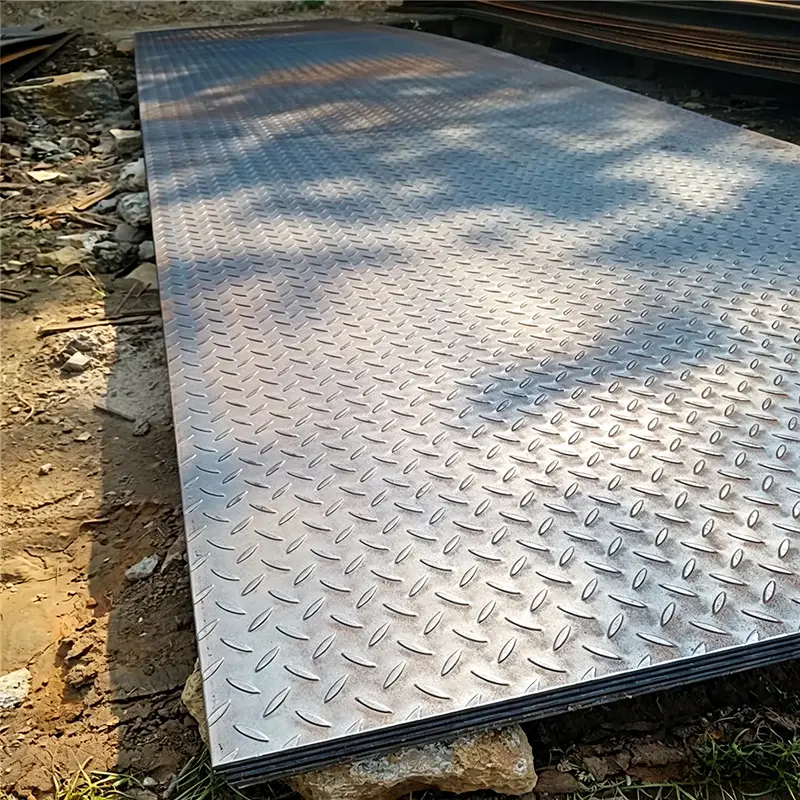

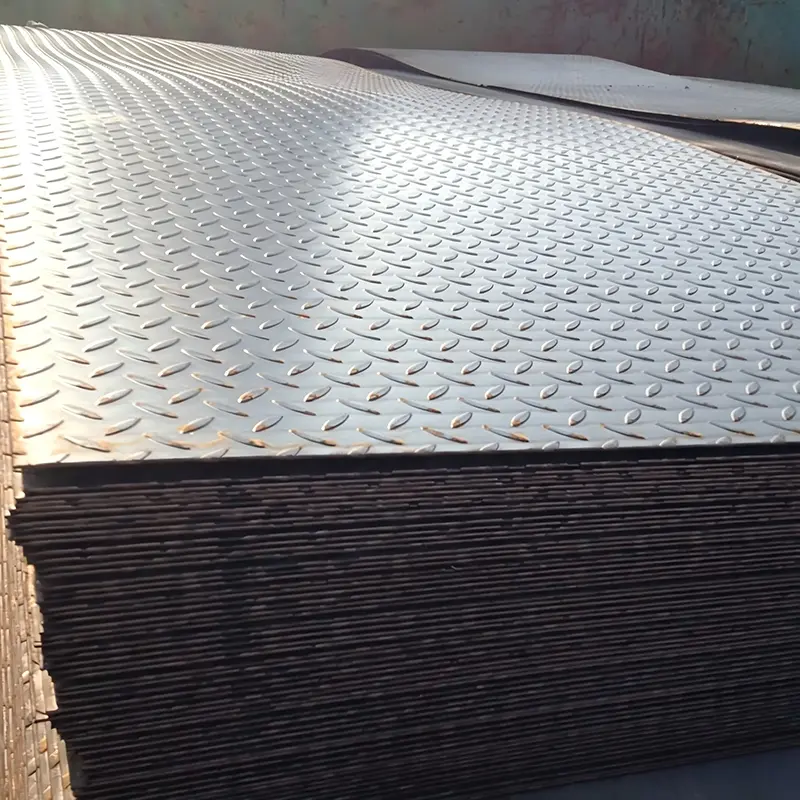

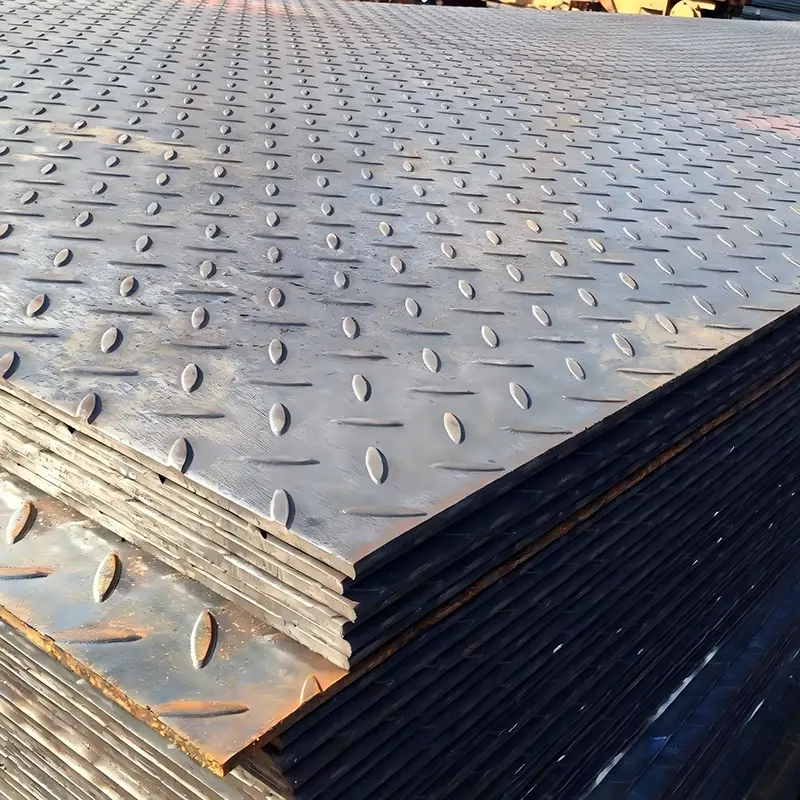

Mild steel checkered plate, also named carbon diamond tread plate, is a hot rolled steel sheet with continuous raised anti-slip patterns on one surface. Base raw materials include common Q235B mild steel and high strength Q355B low alloy steel, which can meet the load demands of stair treads, maintenance walkways and vehicle floor panels.

All blanks are produced via integrated hot rolling molding, without secondary stamping processing. Pattern height ranges from 0.5mm to 1.2mm to match different anti-slip grade requirements. For outdoor and coastal usage, we support full hot-dip galvanizing treatment to extend service life. Compared with plain steel sheets of equal thickness, this patterned steel plate owns better bending resistance and anti-slip property, making it the most cost-effective anti-slip flooring material for general industrial and building projects.

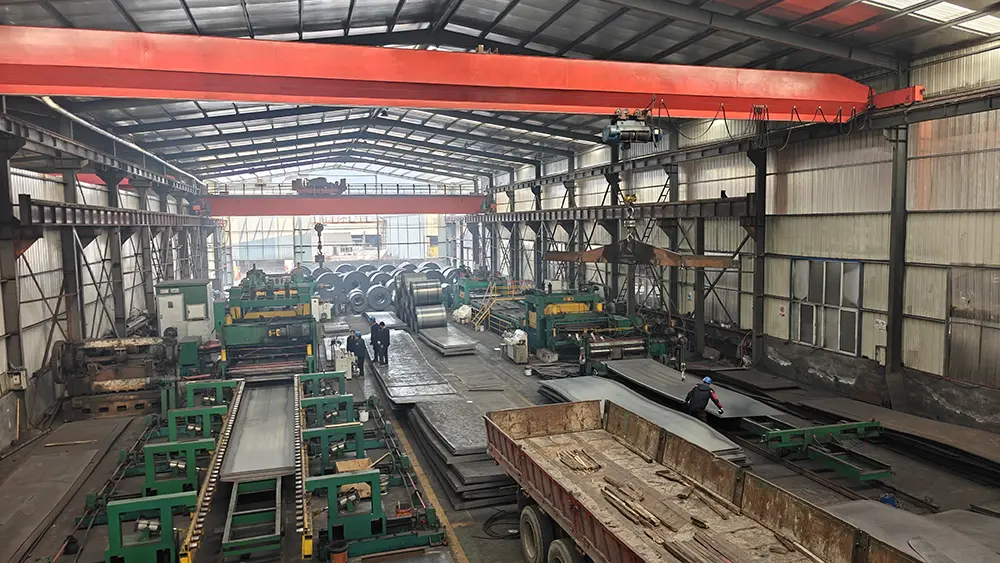

Sanhe Steel's mild steel checkered plate is manufactured in certified workshops with mill test certificates supplied with every shipment. Common grades include Q235B, Q345B, SS400 and A36, with galvanized surface treatment available for enhanced corrosion resistance.

Specification

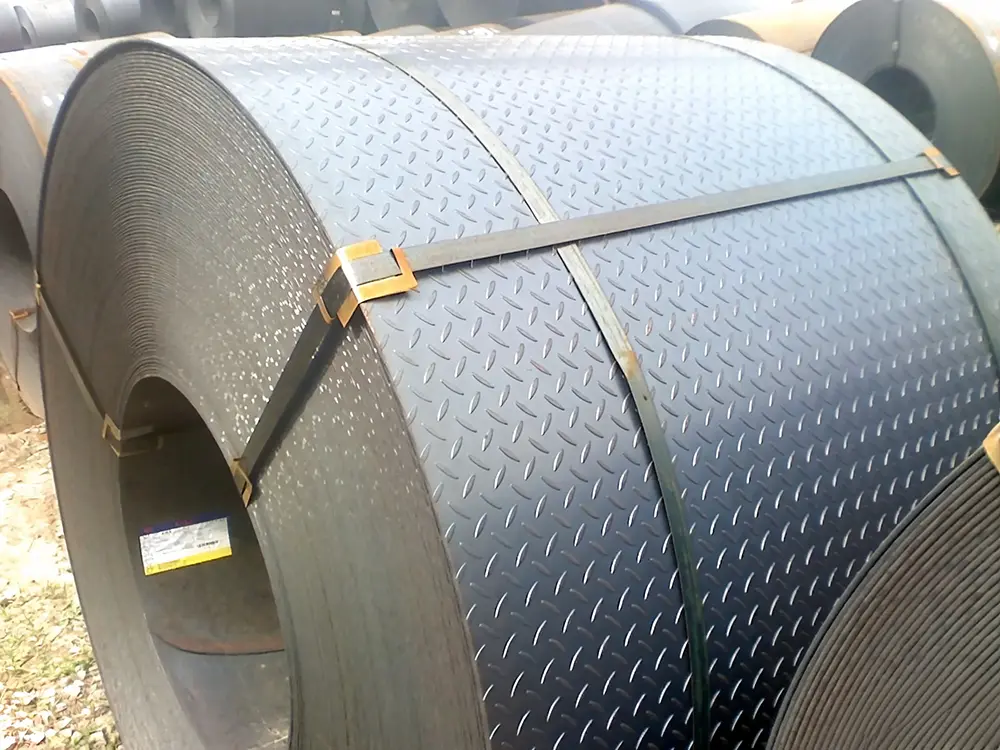

Key Features of Sanhe Steel Checkered Plates:

• Cost-Effective: Significantly lower upfront cost compared to stainless steel alternatives, making mild steel checkered plate the go-to choice for budget-conscious projects.
• Excellent Anti-Slip Performance: Raised diamond, hyacinth bean, or round bean patterns provide reliable traction in wet, oily, or high-traffic environments.
• Good Weldability and Formability: Easy to cut, bend, and weld using standard fabrication techniques.
• Customizable Surface Protection: Available in black, oiled, shot-blasted, painted, or hot-dip galvanized finishes to match specific corrosion protection needs.
• High Strength Options: Available in Q235B (equivalent to ASTM A36) for standard applications, or Q345B (equivalent to ASTM A572 Gr.50) for higher load-bearing requirements.
• Wide Size Range: Thickness from 0.8mm to 20mm, widths up to 2000mm, lengths customizable to project needs.

Application Fields

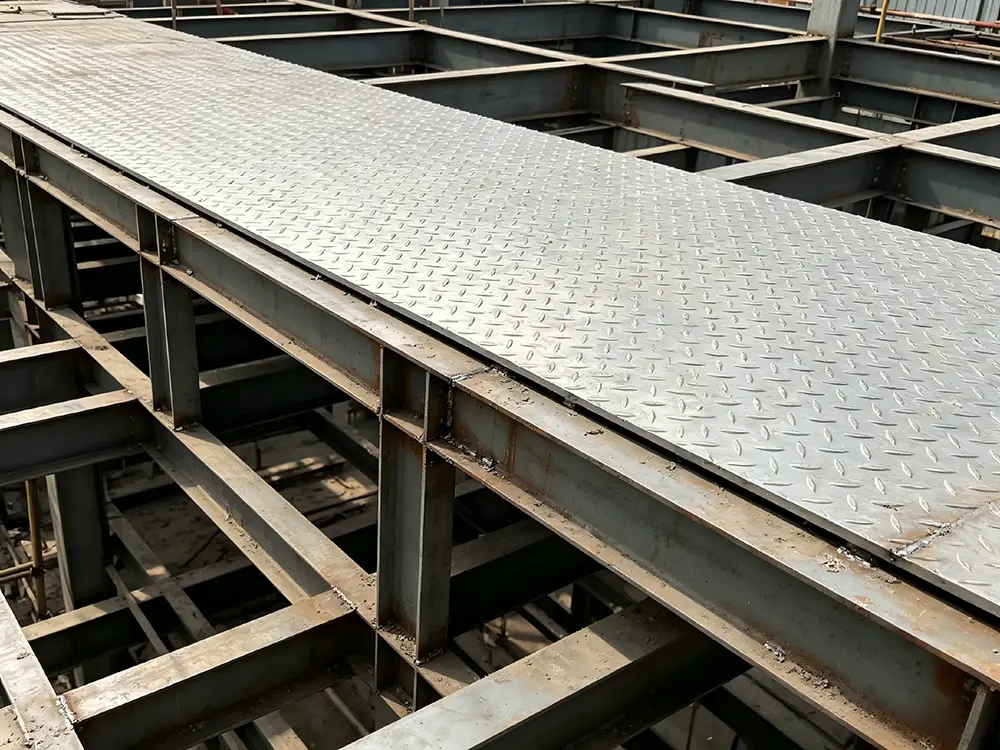

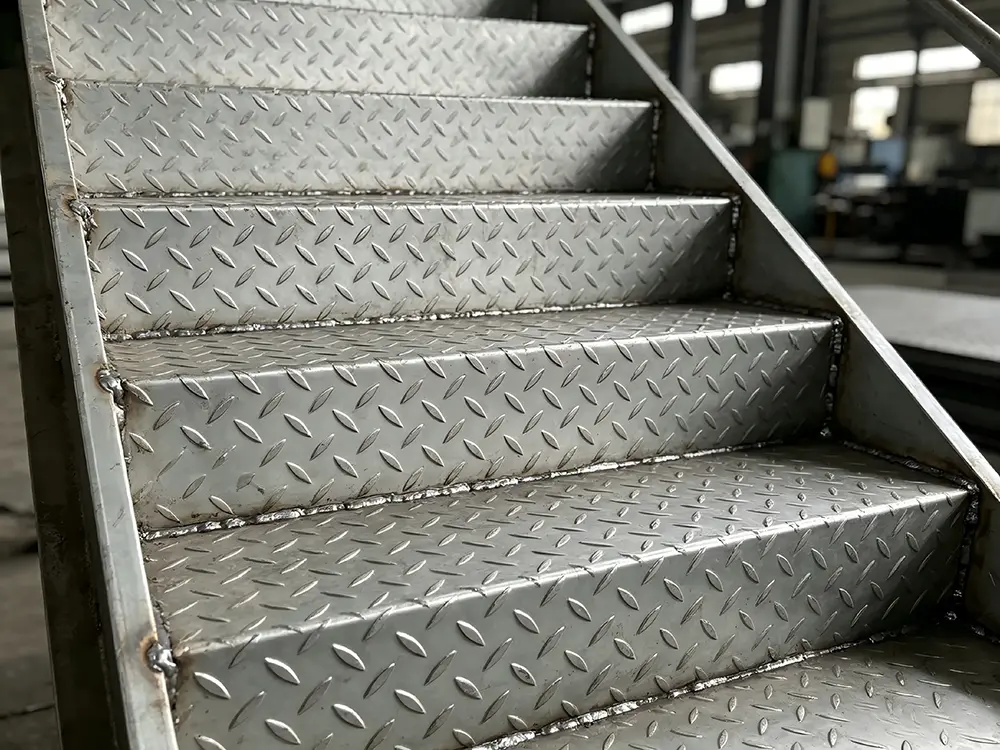

The construction sector consumes over 60% of total mild steel checkered plate output, the largest demand market. Typical construction uses include stair treads, equipment operation platforms, factory walkways and fire escape passages.

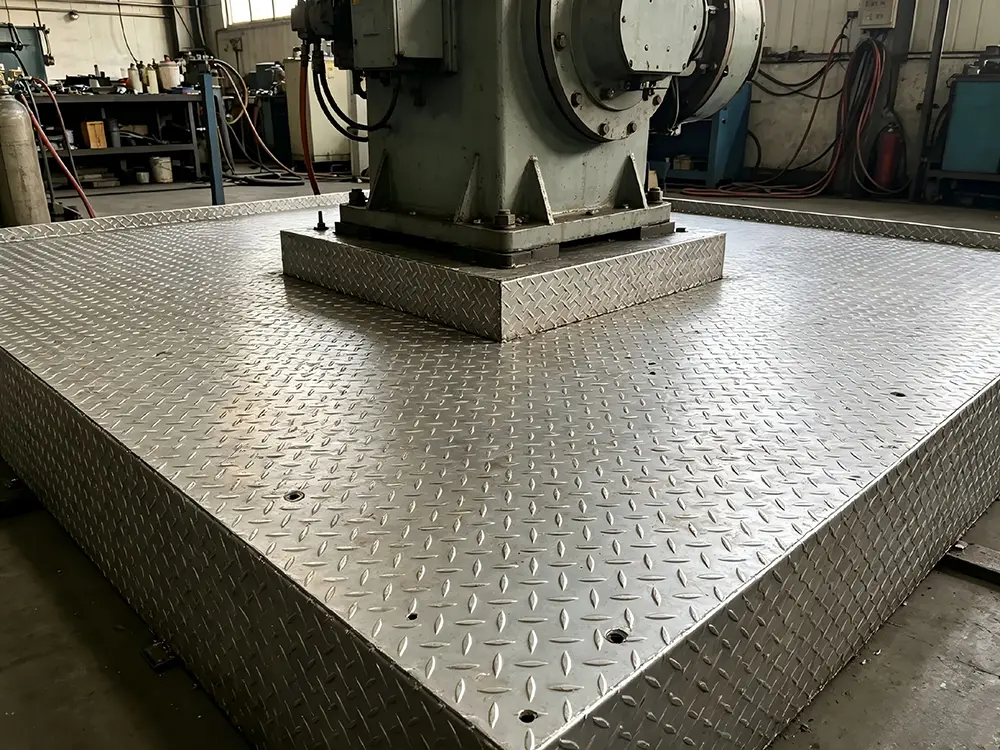

Industrial equipment accounts for around 25% of market demand, widely used as forklift foot pedals, conveyor side walkways, equipment overhaul platforms and mechanical base anti-slip floors.

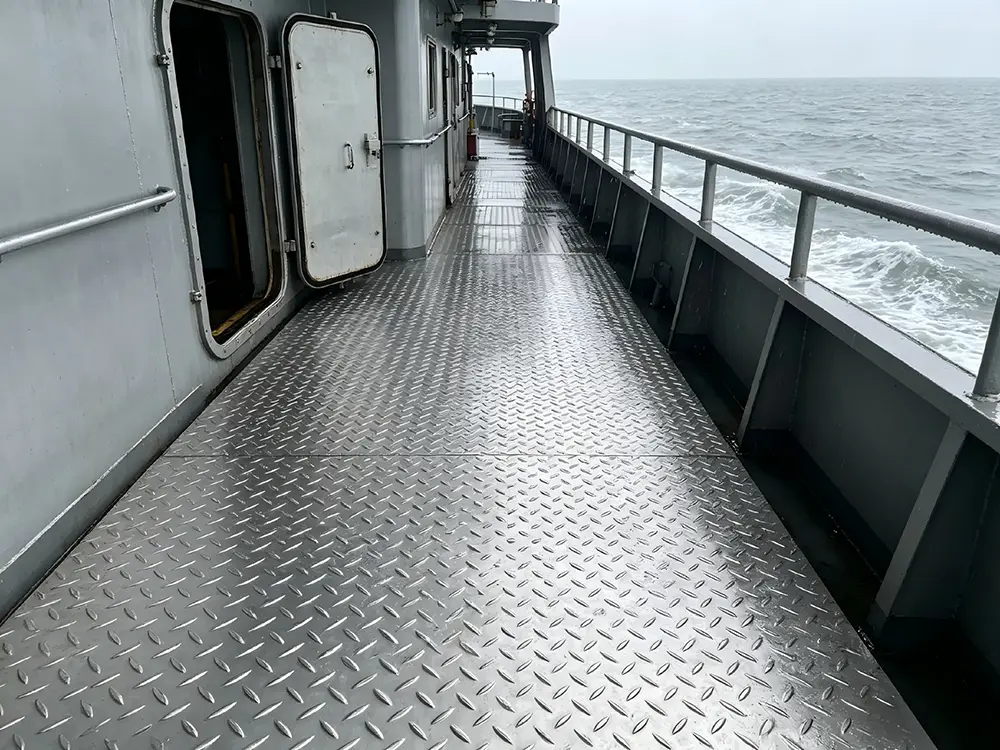

Transportation industry application volume rises rapidly in recent years, ideal for truck cargo bed floors, rail vehicle passenger crossing platforms and container anti-slip liners.

Innovative decorative usage keeps expanding: artistic wall panels, custom industrial-style furniture. After pickling and color tinting treatment, the plate surface gains unique metallic texture for personalized interior decoration projects.

Daily Maintenance and Installation Notes

Routine Maintenance

• Regularly clear dirt, oil and debris accumulated inside pattern grooves to keep stable anti-slip performance.
• For outdoor un-galvanized mild steel plate, reapply anti-rust paint every 2 to 3 years. Shorten maintenance intervals for coastal high salt fog areas to avoid early rust penetration.
• Hot-dip galvanized checkered plates only need simple surface washing; touch-up zinc-rich paint for scratched zinc coating areas timely.

Installation and Welding Precautions

• Install the plate with pattern tips facing the main walking direction to maximize anti-slip friction effect.
• Fully wipe off anti-rust oil on pattern surfaces before welding construction. Use low welding current and segmented welding technique to reduce plate deformation and warpage.
• When cold bending the plate, bend direction must be perpendicular to the steel rolling direction to prevent surface crack generation.

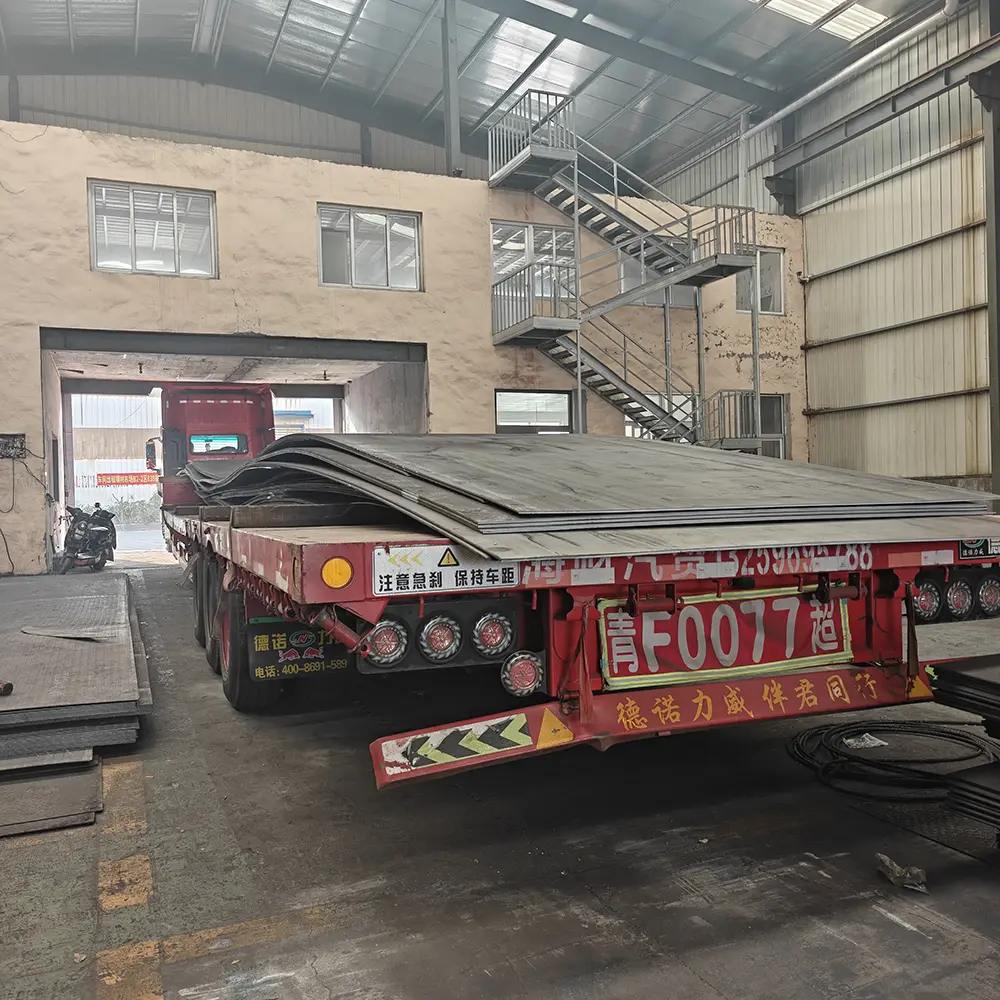

Real Cases of Sanhe Steel

Project: Cambodia Garment Industrial Park

5mm ordinary precision Q235 hot-rolled mild steel checkered plate, classic diamond pattern, conventional stock size 1250×2500mm, oiled anti-rust treatment, thickness tolerance strictly controlled within ±0.8mm, pattern height consistent deviation ≤0.1mm.

Project Details: Provided one-stop steel supply and cutting processing services for multiple factory renovation projects in Cambodia Garment Industrial Park, mainly used for factory indoor and outdoor stair treads, workshop overhead walkways and equipment maintenance platforms. The local rainy season is long and the workshop ground is prone to damp and slippery. The 5mm checkered plate with uniform raised patterns significantly improves anti-slip performance, effectively solving the safety hazard of slipping for workers walking and transporting materials. The ordinary precision grade meets the daily use needs of industrial plants with high cost performance. After overall laying and installation, the walkway is stable and durable, with low later maintenance cost, and has been widely recognized by the park engineering contractor.

Our Certificate

Global market access and international certification, helping to expand overseas layout.

FAQ

Q1: What patterns of mild steel checkered plate are available?

A1: Common patterns include Diamond, Tear Drop, 5-Bar, and Lentil/Round Bead designs. The diamond pattern is the most widely used for industrial applications.

Q2: What's your minimum order quantity? Can I get samples first?

A2: Conventional stock sizes support small trial orders; customized production MOQ depends on thickness and craft. Free samples are available, customers only need to bear the freight cost.

Q3: What surface treatment options do you offer?

A3: We provide fine derusting, anti-rust oil coating, passivation, sandblasting, mirror polishing, matte brushing surface treatments according to customer requirements.

Q4: Do you support custom sizes and special patterns?

A4: Yes. We can cut any customized length & width based on customer drawings, and produce special non-standard patterns via chemical etching or electrochemical corrosion crafts for special industrial customization demands.
