Hot Rolled Checkered Steel Plate for Platforms

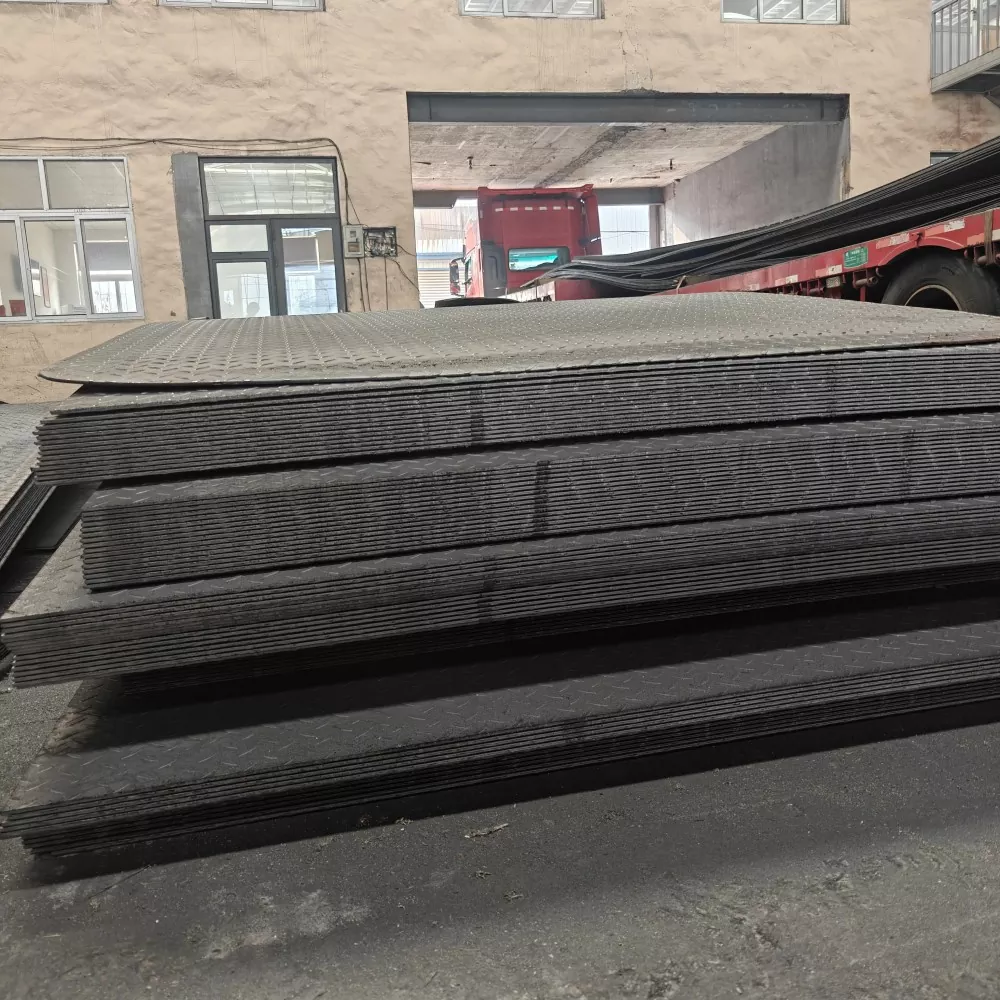

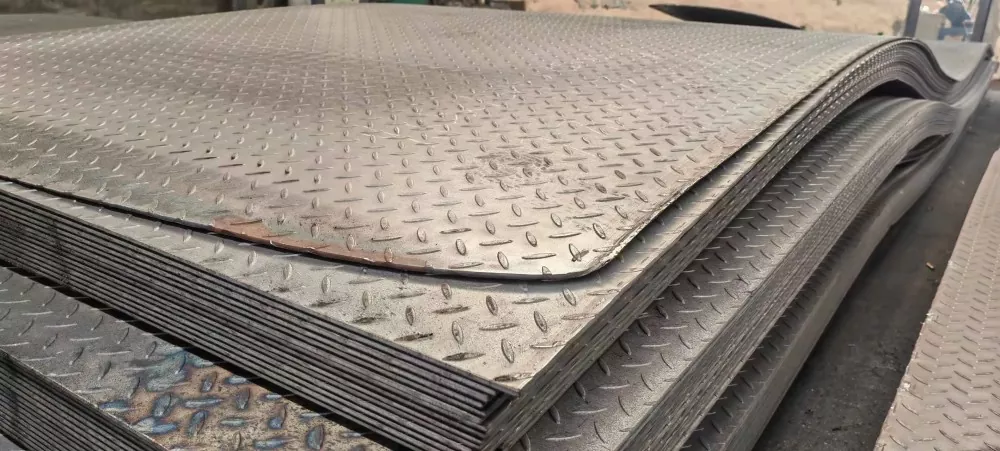

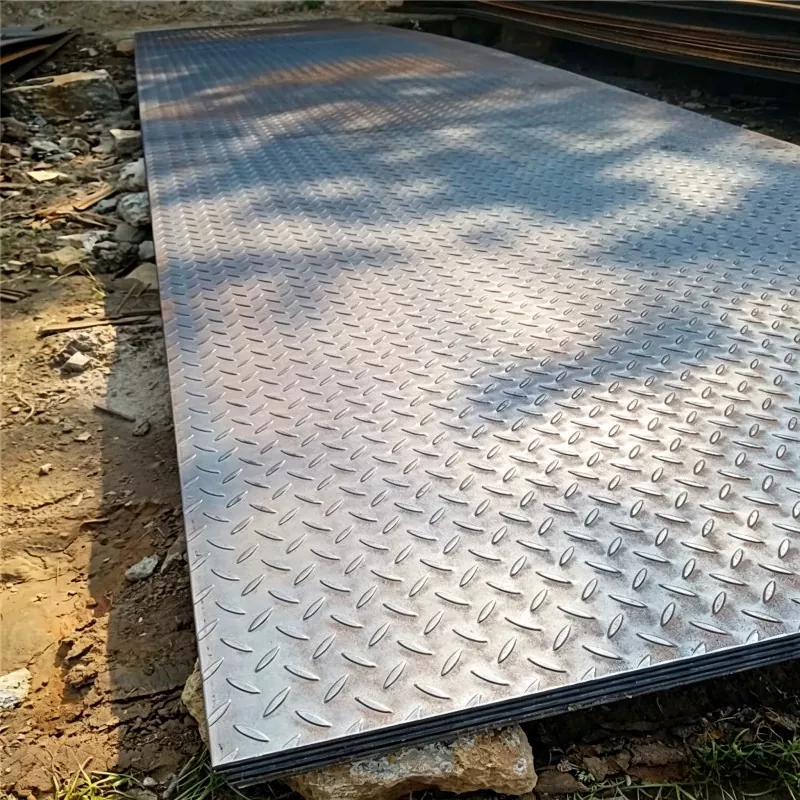

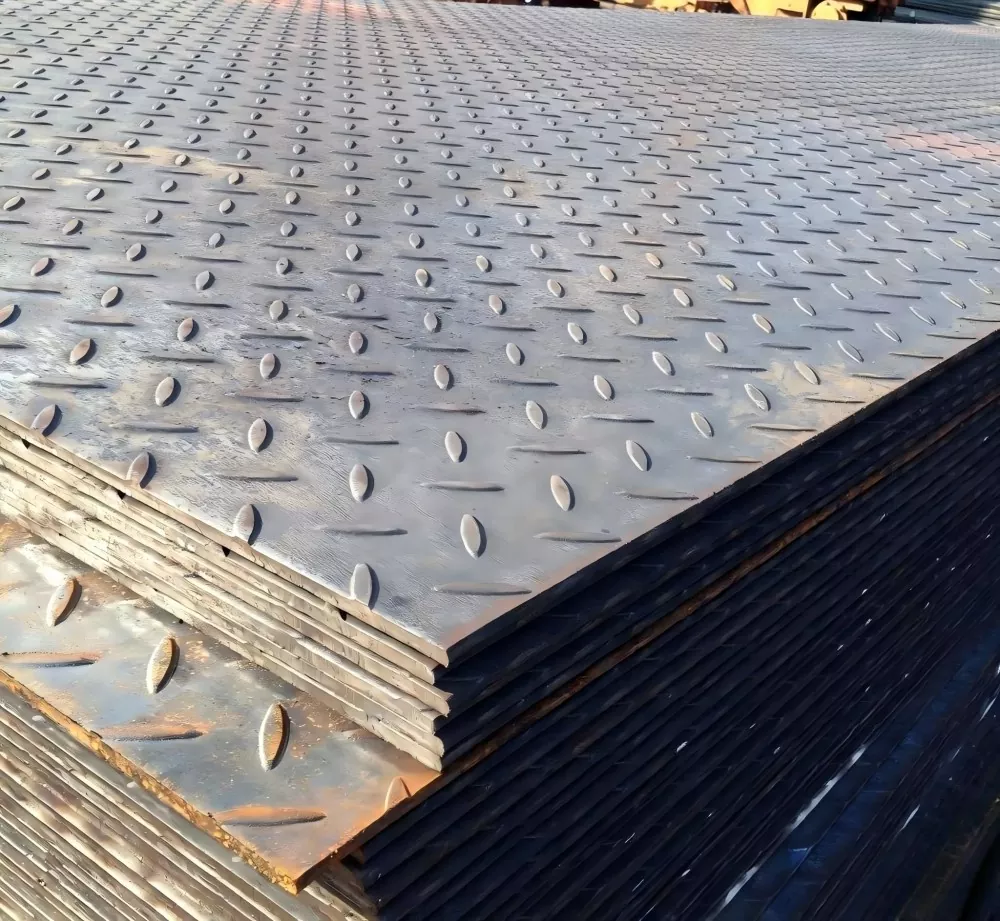

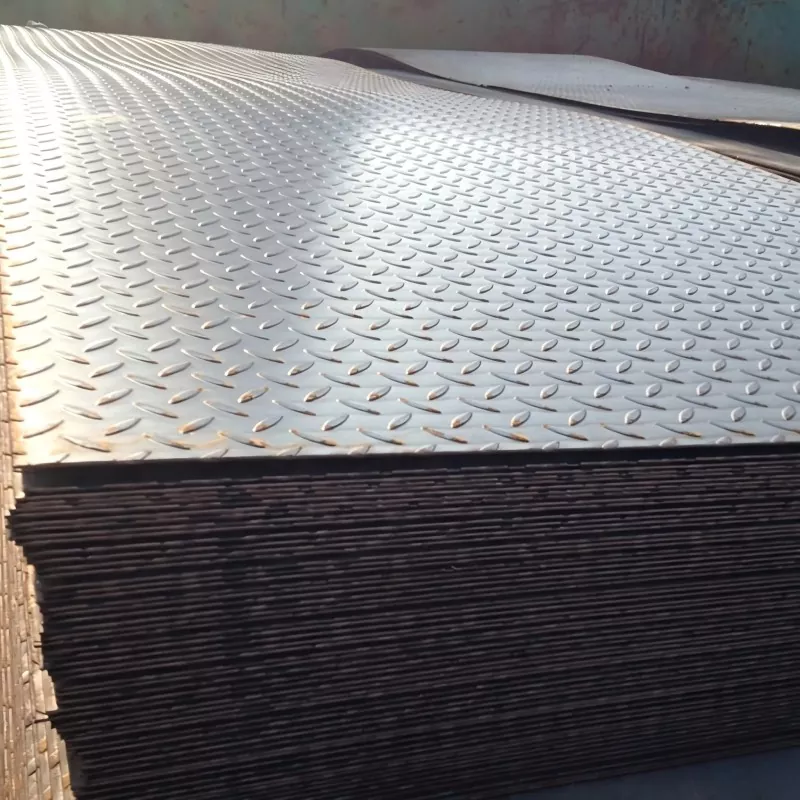

hot rolled checkered steel plate for platforms — also called diamond plate or tread plate — is a hot-rolled steel sheet with raised diamond, lentil, or round-bean patterns formed on one surface during the rolling process itself. The pattern is not welded, stamped, or glued on: it is rolled integrally from the slab, which means it cannot peel, delaminate, or wear flat prematurely.

The raised pattern does two jobs. First, it converts a smooth steel surface into a high-friction surface, the diamonds bite into shoe soles and equipment tires, providing reliable traction in dry, wet, and oily conditions. Second, it adds stiffness: a checkered plate resists bending better than a plain plate of equal thickness, because the raised ribs act as stiffeners. You get both safety and structural efficiency in one product.

Grades, Patterns and Surface Options

Q235B: general-purpose platforms, light to medium duty

Q355B heavy-duty platforms, load capacity 10–15 kN/m²

SS400: standard structural grade for Asian-spec projects

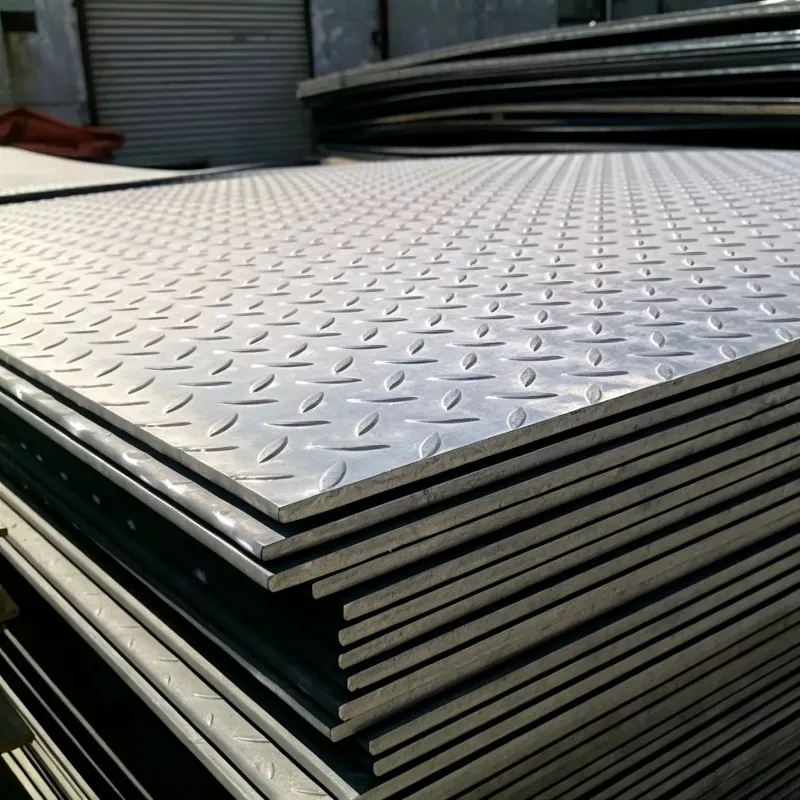

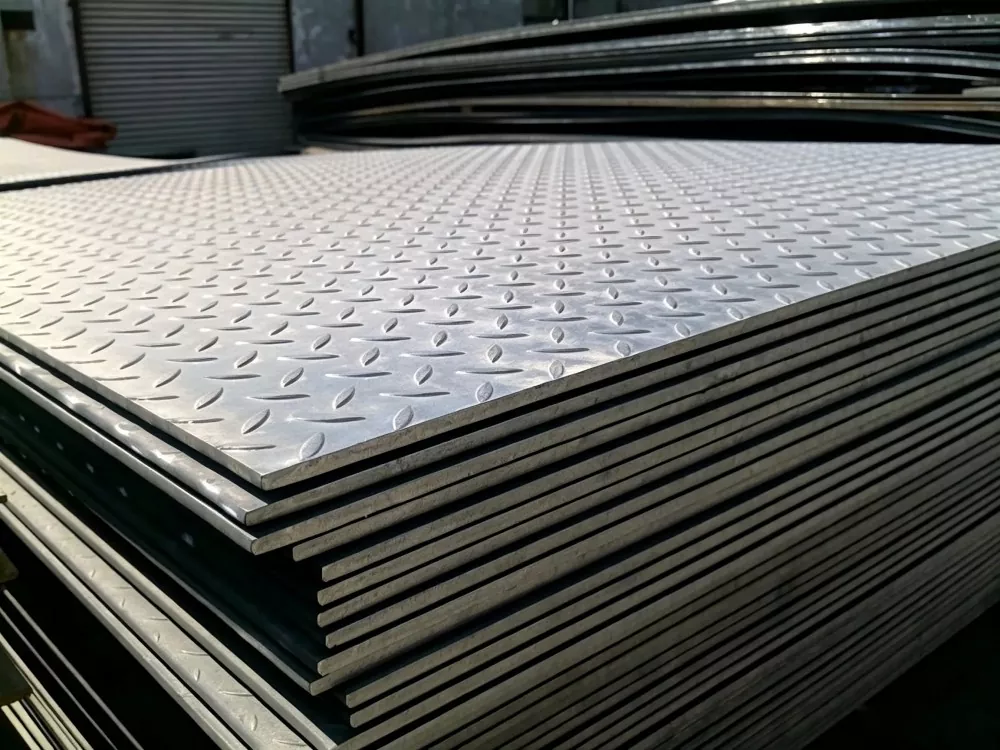

Patterns: diamond, lentil/teardrop, round bean — pattern height 0.5–1.2mm

Thickness: 3mm–12mm standard; width up to 2,000mm; length 1m–12m or custom cut

Surface: black, oiled, shot-blasted, painted, or hot-dip galvanized (≥85μm)

Pattern height and density determine anti-slip performance: standard patterns deliver a friction coefficient of ≥0.6, and Q355B grades reach ≥0.7 — comfortably above the 0.5 minimum most safety standards require. For outdoor and coastal platforms, we recommend hot-dip galvanizing to lock in decades of corrosion-free service.

Key Features and Benefits

Integral Rolling

The pattern is rolled into the plate during hot rolling, there is nothing to weld, nothing to peel, nothing to wear off. Even after years of foot traffic and equipment crossings, the raised diamonds keep their height and grip.

Proven Slip Resistance in Wet Conditions

Our checkered plates deliver an anti-slip coefficient of 0.6–0.7, verified in real installations including a chemical plant platform that has operated safely for 3 years at 0.72. The diamonds shed water and oil, keeping traction in the conditions where flat steel becomes a skating rink.

Structural Stiffness at No Extra Cost

The raised pattern acts as integral stiffeners, improving bending resistance versus plain plate of the same thickness. Many platform designs can step down a thickness grade and still meet deflection limits, a real material saving.

Cost-Effective vs. Stainless Alternatives

Mild steel checkered plate costs a fraction of stainless diamond plate. For general industrial platforms, workshops, and vehicle floors, Q235B/Q355B checkered plate delivers the same anti-slip function at a fraction of the material cost.

Ready-to-Fabricate

Cut it, shear it, weld it, bend it, standard fabrication techniques work without special tooling. CNC shearing and leveling available from our factory to your exact dimensions before delivery.

Product Specifications

Typical Applications

As a hot rolled checkered steel plate for platforms manufacturer and supplier, Sanhe Steel supplies checkered plate in bulk at factory-direct pricing for:

Equipment operation and maintenance platforms in factories

Workshop overhead walkways and fire escape passages

Stair treads and stairway landings

Vehicle cargo bed floors and trailer decking

Conveyor side walkways and machine access platforms

Loading docks, mezzanine floors, and pedestrian bridges

Real case

Designed for heavy machinery and metal processing, this large-span portal frame workshop features high-strength Q355B H-beam steel columns and integrated overhead crane runway systems. The clear-span structure eliminates interior column obstructions, allowing seamless handling and storage of hot rolled checkered steel plate for platforms.

To optimize operational costs, the roof is fitted with high-translucency skylight panels that deliver abundant natural daylight and reduce daytime lighting energy usage by 20%. All steel components were precision-fabricated, shot-blasted, and painted in-factory for rapid site assembly, delivering a durable, high-load industrial facility ahead of schedule.

Production Process

Hot rolled checkered steel plate for platforms is produced by hot rolling: steel slabs are heated and passed through rolling stands, with the final stand engraved with the pattern. The pattern is impressed into the hot steel in one pass, creating an integral surface that needs no secondary processing.

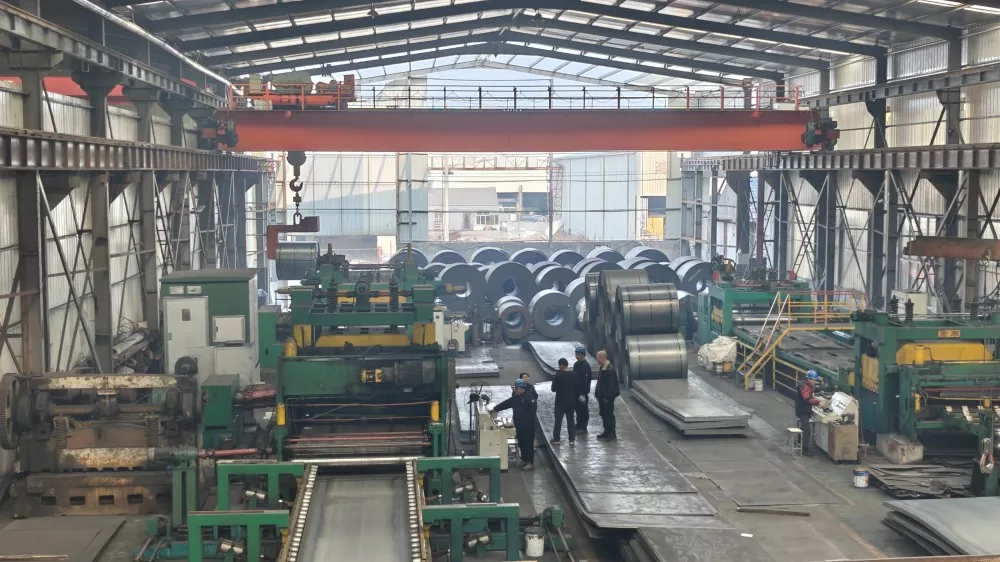

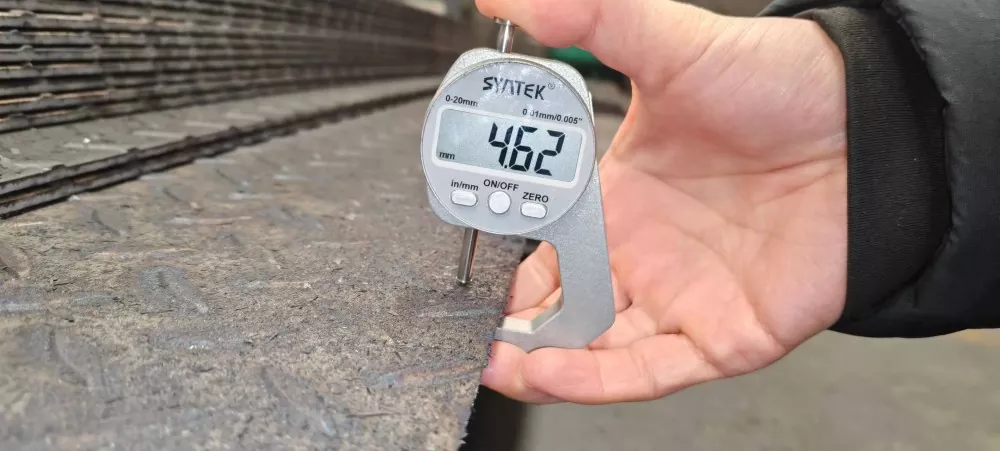

At Sanhe Steel, coils are leveled on our flattening line, then cut to your exact dimensions on CNC shearing lines. Thickness tolerance is held to ±0.8mm and pattern height deviation within ±0.1mm — verified on every batch. Galvanizing, painting, or oiling is applied per your specification.

Quality control follows ASTM/JIS/EN requirements with our CNAS-accredited in-house laboratory testing mechanical properties and pattern geometry. Mill test certificates accompany every shipment.

Why Choose Sanhe Steel

A Steel Supplier You Can Audit

Sanhe Steel is a bona fide manufacturing facility in Qingdao Jiaozhou with CNC shearing, leveling, and slitting lines — plus a CNAS-accredited in-house laboratory. Since 2008, we have evolved from trader to processing partner, serving construction, automotive, and energy projects worldwide.

Certified to Global Standards

CE (EU CPR), IATF 16949 (automotive), ISO 9001, ISO 14001, ISO 45001. Every batch ships with MTC, with EN 10204 Type 3.1/3.2 available on request. Third-party inspection (SGS, BV) is always welcome.

Mill-Level Supply Power

Long-term strategic partnerships with Baowu and HBIS give us priority sourcing and 10,000+ tons of stock. Standard stock items ship in 7–15 days — urgent orders can be expedited.

Cut-to-Size, Not Cut-Corners

We deliver plates already sheared, leveled, and cut to your exact dimensions — saving you time, reducing waste, and eliminating your secondary processing. You receive ready-to-install material, not raw coils to figure out.

FAQ

Q: What thickness of hot rolled checkered steel plate for platforms should I use for a platform?

A: For pedestrian walkways and light maintenance platforms, 4–6mm Q235B is standard. For heavy equipment platforms, use 8mm+ Q355B — load capacity roughly doubles with the grade upgrade. Send us your load and span and we will confirm the right spec.

Q: Is galvanizing necessary for outdoor platforms?

A: For outdoor or coastal installations, yes — hot-dip galvanizing (≥85μm) extends service life to 20+ years versus 2–3 year repainting cycles for bare plate. We offer galvanizing in-house through our processing partners.

Q: Which pattern is best for stair treads?

A: Diamond pattern is the classic choice for stairs — its geometry provides equal grip in all directions. Pattern height 1.0–1.2mm is recommended for stair applications.

Q: Can you cut plates to custom sizes?

A: Yes — CNC shearing, slitting, and leveling are our core processing capabilities. We deliver exact-dimension plates, strips, and irregular shapes with strict tolerance control.

Q: What certificates come with the plates?

A: Every shipment includes a Mill Test Certificate. EN 10204 Type 3.1/3.2, SGS/BV third-party inspection, and full CE documentation available on request.
