Galvanized Checkered Steel Plate

Galvanized checkered steel plate is a carbon steel pattern plate with a protective hot-dip zinc coating applied after hot rolling and pattern forming. The zinc layer acts as a sacrificial barrier that prevents rust and corrosion, dramatically extending service life in outdoor, high-humidity, and chemically aggressive environments. Unlike plain black checkered plates that require field painting, galvanized tread plates arrive ready for installation with uniform corrosion protection on all surfaces, including pattern tops and groove bottoms. The base steel retains full structural strength while the zinc coating delivers maintenance-free anti-corrosion performance for 20+ years under normal atmospheric conditions.

This combination makes Galvanized Checkered Steel Plate for Industrial Applications the preferred choice for outdoor stair treads, marine walkways, chemical plant platforms, wastewater treatment facilities, and any application where both slip resistance and corrosion resistance are non-negotiable. We supply diamond, lentil, and five-bar patterns with zinc coating weights ranging from 300g/㎡ to 600g/㎡, plus custom cutting to your exact dimensions.

Surface Treatment Options

Hot Rolled Black Surface and Anti-Rust Oil: Standard mill finish coated with light rust-inhibitor oil for indoor or short-term storage use.

Hot-Dip Galvanized: Heavy zinc coating providing superior long-term corrosion resistance for harsh outdoor, high-humidity, or marine environments.

Spray Painting / Primer Coating: Red/Gray anti-corrosion primer or custom color powder coating ready for immediate job-site application.

Shot Blasting: High-pressure surface descaling to ensure an ultra-clean finish for subsequent welding or coating.

Core Advantages

Superior anti-slip performance: Effectively avoid slipping risks for workers under wet or oily working conditions, improving site safety.

Integrated hot rolled pattern: Patterns tightly combined with base steel, not easy to peel off or fall off during long-term service.

High load-bearing and bending resistance: Able to withstand frequent vehicle and pedestrian load, ideal for factory platforms and forklift passages.

Multiple patterns available: Diamond, lentil and five-bar patterns for optional selection to match different usage scenarios.

Custom surface treatment: Hot-dip galvanizing, painting or anti-rust oil treatment can be customized as anti-corrosion demands.

Economical and durable: Balances anti-slip functionality and decorative effect, lowering long-term project maintenance cost.

Specification

Manufacturing Process

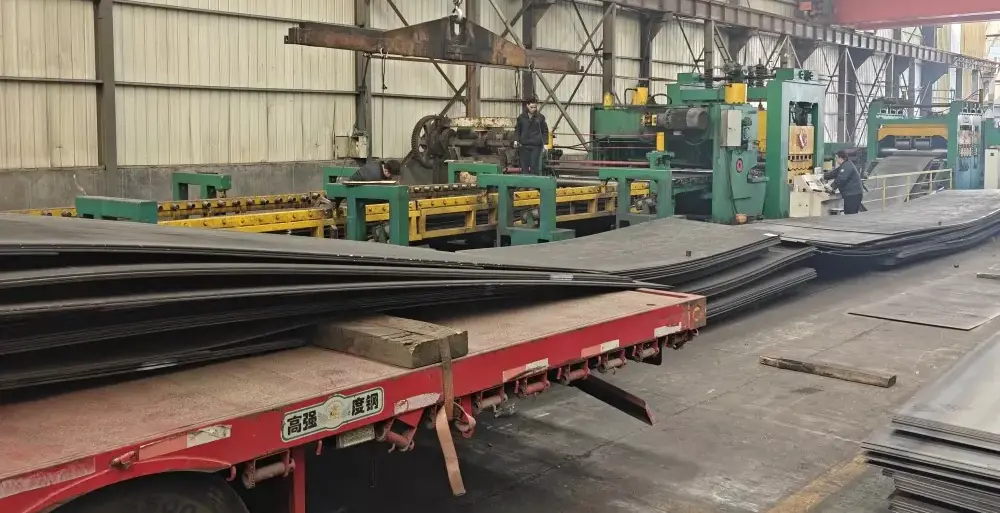

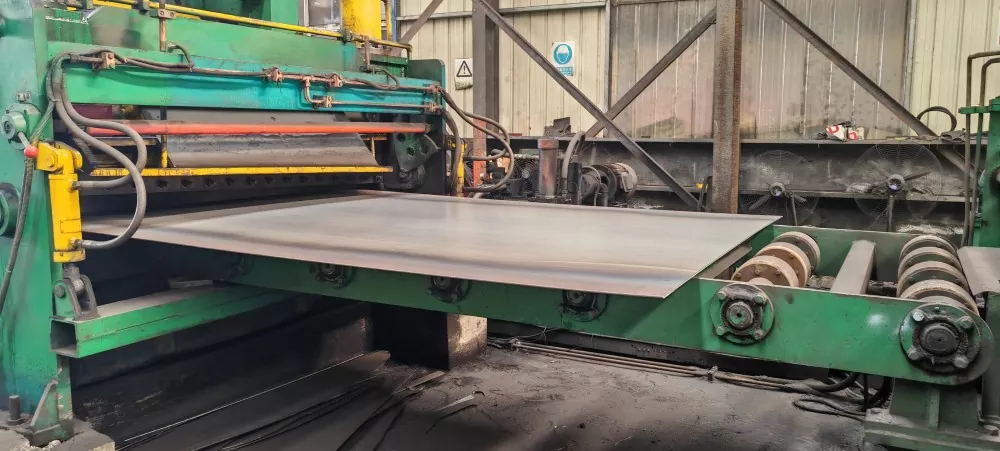

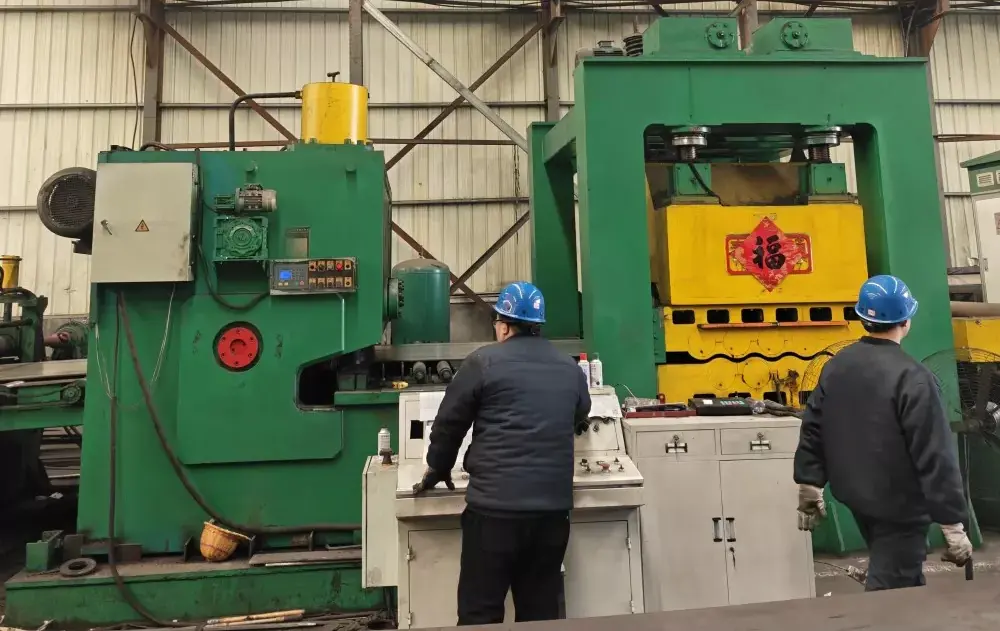

The whole production flow includes raw slab feeding, integral hot rolling & embossing, fixed-length cutting, surface visual inspection, anti-rust handling and final packing. Different from post-pressed pattern plate, our anti-slip patterns are formed synchronously during hot rolling, ensuring stronger adhesion between patterns and base plate without easy peeling.

Wide Applications

Building & Steel Structure

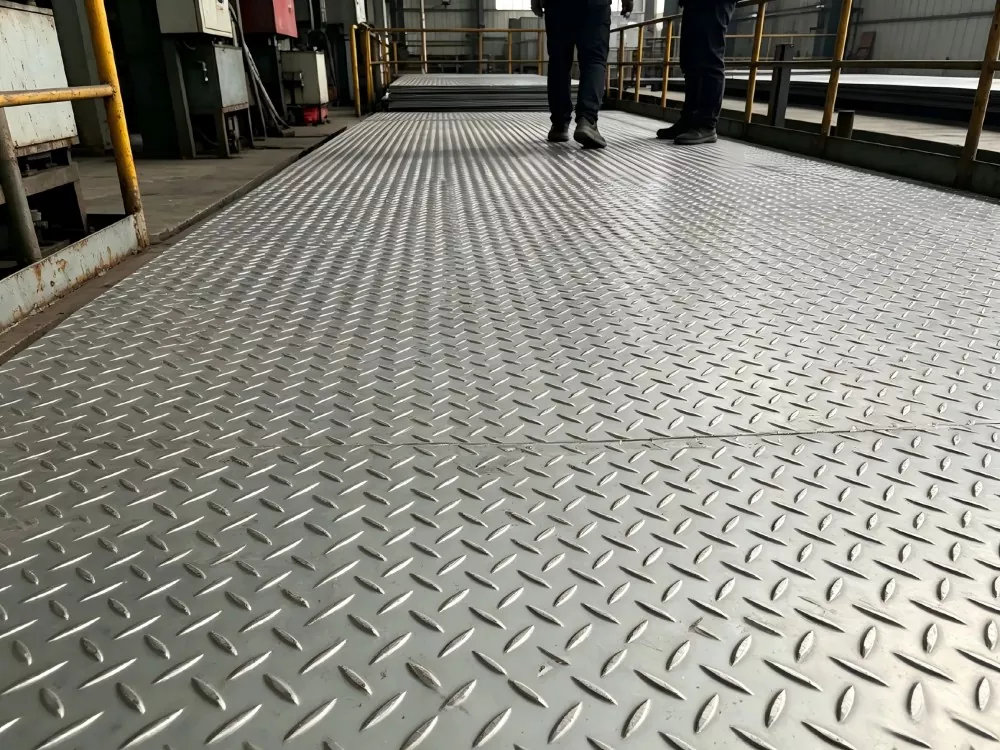

Stair treads, factory walkways, maintenance platforms, ramp anti-slip flooring.

Transport Industry

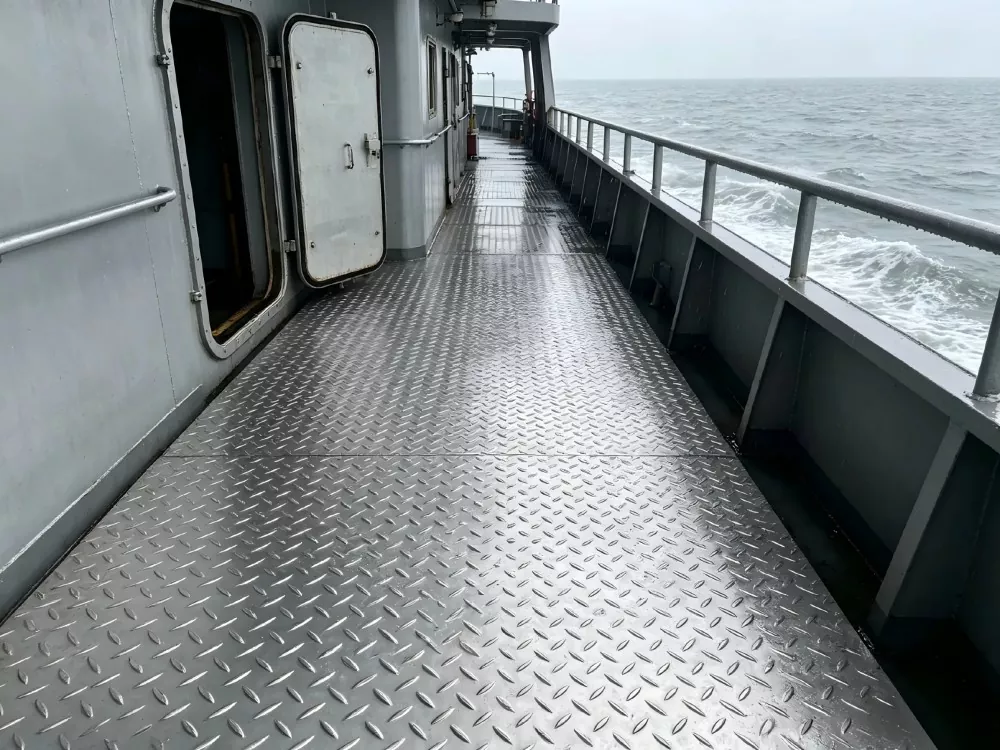

Truck & trailer floor plates, ship deck anti-slip panels, container floors.

Industrial Workshop

Workshop flooring, equipment base plates, trench cover, assembly platform.

Port & Municipal Engineering

Wharf walkway, overpass treads, underground garage ramps.

Machinery & Equipment

Machine anti-slip base, equipment guard plates.

Surface Treatment Options

Hot rolled black surface coated with anti-rust oil is our regular stock condition for fast delivery. Hot-dip galvanized checkered plate is recommended for outdoor and humid environments for long-lasting anti-corrosion performance. We also provide spray painting, primer coating and shot blasting treatment upon customer requests.

Quality Inspection & Certificates

We carry out 100% visual inspection to check pattern integrity for every finished plate. Strict thickness and flatness detection as well as mechanical property testing will be implemented before delivery. Test certificates including SGS and CQM can be provided to support customers' customs clearance and project acceptance.

Why Choose Us

Sanhe Steel offers factory direct supply so customers can get competitive bulk prices without middlemen markup. Custom cutting and size customization are fully supported. Our production schedule can flexibly arrange both large bulk orders and small trial orders. We adopt professional seaworthy export packing to prevent rust during long ocean transportation. Clients can enjoy one-stop service covering material selection, custom processing and full set of document support.

Quality Warranty

Sanhe Steel provides a comprehensive quality guarantee for all Galvanized Checkered Steel Plate for Industrial Applications:

Material Defect Warranty: 12 months from the date of shipment against chemical composition and mechanical properties non-conformance

Zinc Coating Warranty: Guaranteed zinc coating weight (300-600g/㎡) per order specification; any non-conformance will be replaced

Pattern Integrity Warranty: 12 months against abnormal pattern peeling, flattening, or wear under normal service conditions

Dimensional Accuracy Warranty: Full replacement or rework for dimensional non-conformance caused by processing errors

Documentation: Full MTC (Mill Test Certificate) + zinc coating test report provided per batch

Third-Party Inspection: SGS/BV inspection reports available upon request

FAQ

Q1: What is the difference between base thickness and overall thickness?

Base thickness refers to the thickness of the flat plate excluding the pattern. Overall thickness includes both the base plate and the height of the raised pattern rib. When ordering, always specify base thickness to ensure proper load calculations.

Q2: Can you cut chequered plates to custom sizes?

Yes. Our factory offers full custom cutting services, including flame, plasma, and laser cutting, as well as shearing to match your exact project dimensions or CAD drawings.

Q3: Which grade is better for outdoor use: Q235B or Q355B?

Q235B (equivalent to ASTM A36 / S235JR) is standard for most industrial applications. Q355B (equivalent to S355JR) offers higher yield strength for heavy structural loads. For outdoor corrosion protection, hot-dip galvanizing is recommended regardless of the base grade.

Q4: Is Galvanized Checkered Steel Plate for Industrial Applications available?

Yes, we supply both hot-rolled black plates and hot-dip galvanized tread plates with zinc coatings ranging from 300g/㎡ to 600g/㎡ for maximum rust prevention.

Q5: What is the difference between diamond pattern and lentil pattern?

A5: Diamond pattern offers the highest anti-slip coefficient with clear, sharp raised edges, making it ideal for industrial platforms, stair treads, and high-traffic areas. Lentil (flat bean) pattern has a smoother surface with rounded raised shapes, better suited for applications requiring frequent cleaning (food processing) or moderate foot traffic. For heavy-duty industrial use, we recommend diamond pattern.

Q6: Does hot-dip galvanizing affect the pattern height?

A6: Yes, hot-dip galvanizing adds a zinc coating layer that slightly increases the overall thickness. For a 5mm base plate, the galvanized coating typically adds 0.05-0.10mm to the pattern height. This minor increase does not affect anti-slip performance. We recommend specifying base thickness (excluding zinc coating) when ordering to avoid confusion.
