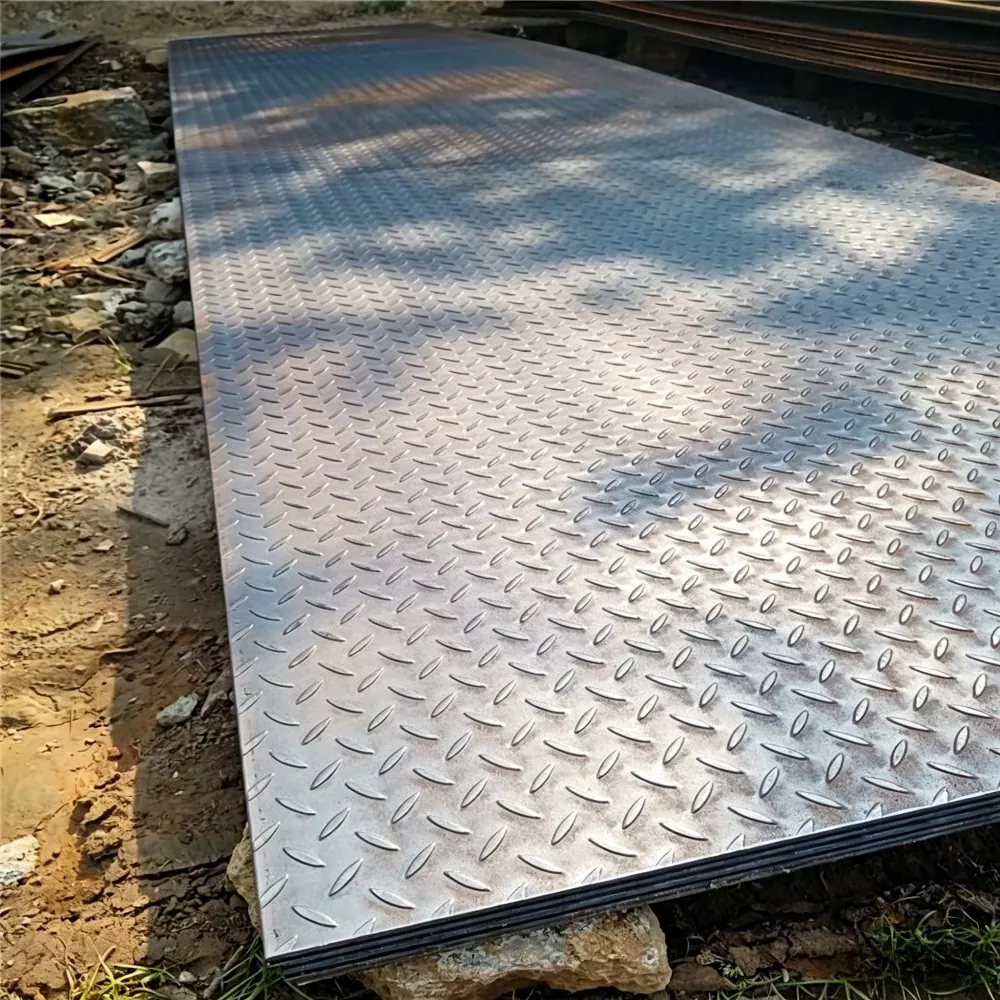

Anti Slip Diamond Pattern Checkered Steel Plate

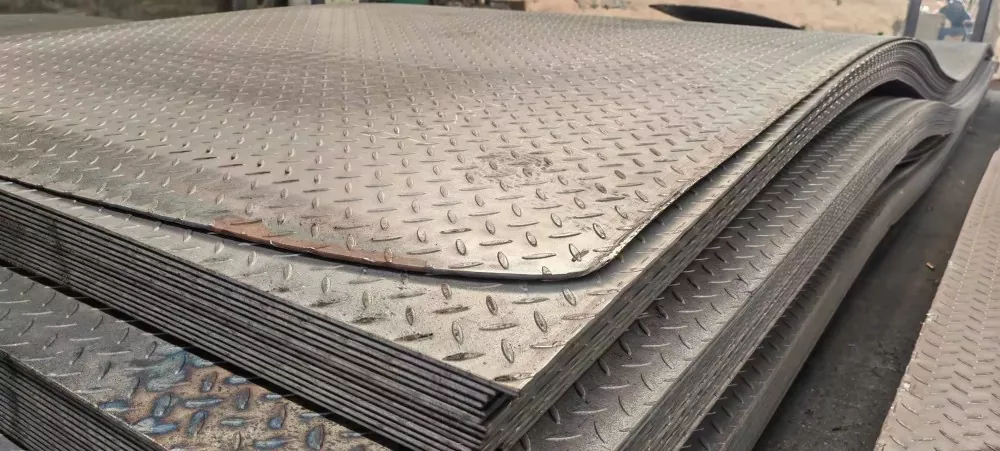

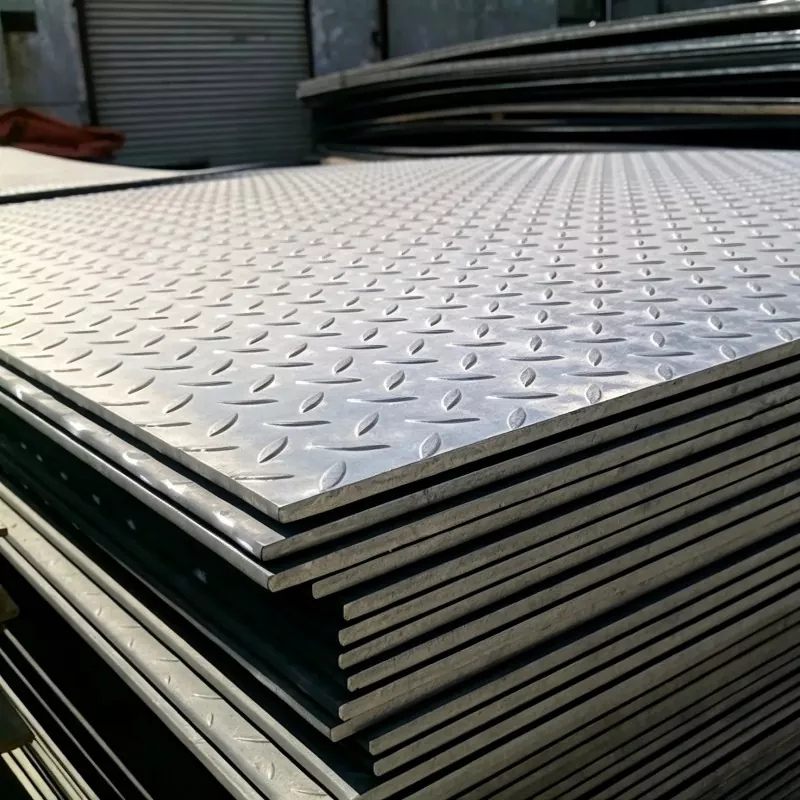

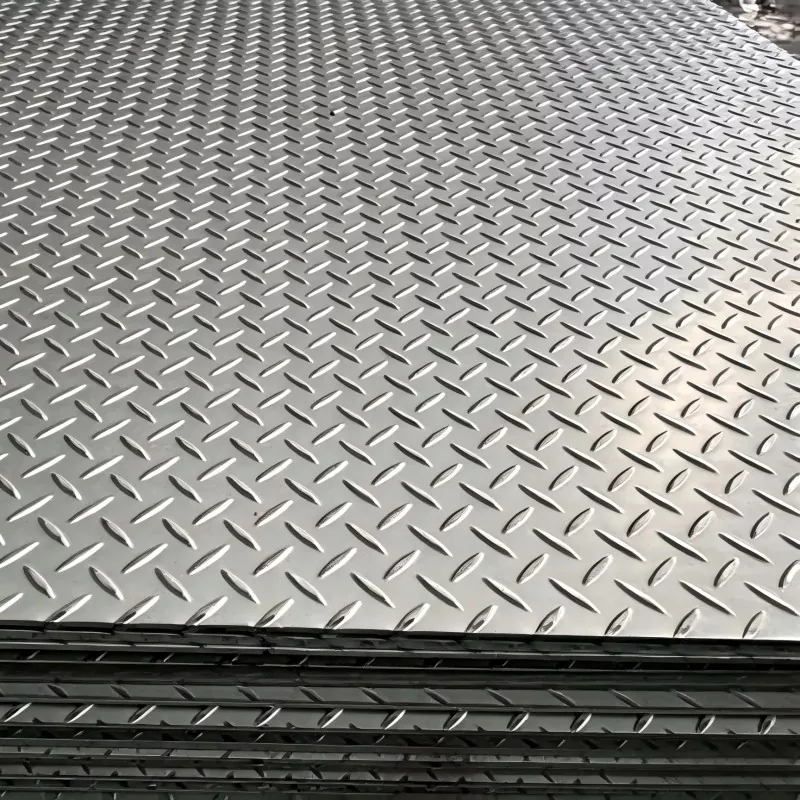

Anti slip diamond pattern checkered steel plate, also widely known as diamond plate or tread plate, is hot rolled carbon steel formed with raised embossed patterns on one surface. Sanhe Steel’s checkered steel plate is manufactured under strict hot rolling standards to guarantee uniform pattern height, solid substrate rigidity and stable load-bearing capacity.

Here's the straightforward definition: it's a steel plate with raised, repeating patterns on one surface, created during the hot rolling process by passing the steel through a finishing roll that's engraved with the pattern design. The pattern height typically ranges from 0.2 to 0.3 times the base thickness, with a minimum of 0.5mm.

Core Advantages

Reliable anti-slip performance: Raised patterns create friction contact surface, drastically reduce slip risks for personnel and wheeled equipment.

Outstanding structural strength: Thick base steel substrate delivers high load capacity, resistant to bending under heavy static and dynamic loads.

Simple maintenance: Textured surface hides minor scratches, abrasion marks and light dirt; easier regular cleaning compared to smooth flat panels.

Flexible processing compatibility: Material can be cut, welded, bent and drilled to fabricate stair treads, trench covers, loading ramps and vehicle floors.

Multiple surface options: Select raw hot rolled, pickled, oiled or galvanized finishes to extend service life in different atmospheric environments.

Hot Rolled Flat Steel Plate VS Checkered Anti-Slip Plate

Hot rolled flat steel plate

It has smooth, plain surface without embossed patterns. Primary application focuses on structural load-bearing frameworks, equipment base frames, machinery housings and metal cabinet fabrication. It is the preferred choice for projects requiring extensive secondary metal forming, bending and precision welding work. The flat surface allows full contact during assembly and machining operations.

Hot rolled checkered steel plate

It features continuous raised diamond pattern. Core application targets anti-slip surfaces: factory walkways, industrial stair treads, truck cargo floors, offshore platform access paths. If your project prioritizes slip prevention over precision machining, anti slip diamond pattern checkered steel plate is the practical selection.

Technical Specification

Sanhe Steel Team Background

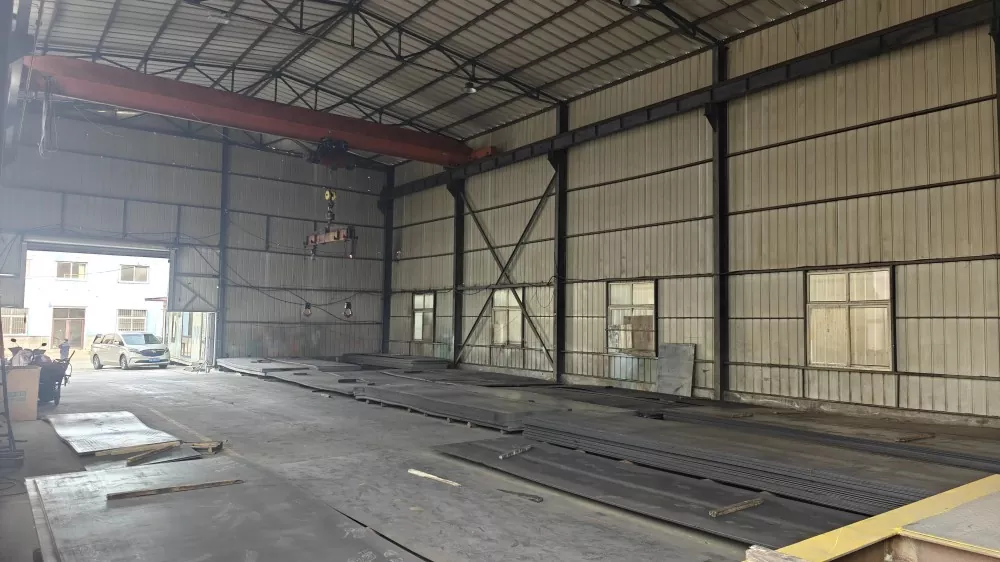

Backed by a standardized production base covering 80,000 square meters, Sanhe Steel boasts robust manufacturing capabilities to support mass production and bulk export of anti slip diamond pattern checkered steel plate. Our annual comprehensive steel plate production capacity reaches 100,000 tons, which fully meets large-scale engineering orders, long-term batch procurement and urgent customized order demands from global clients.

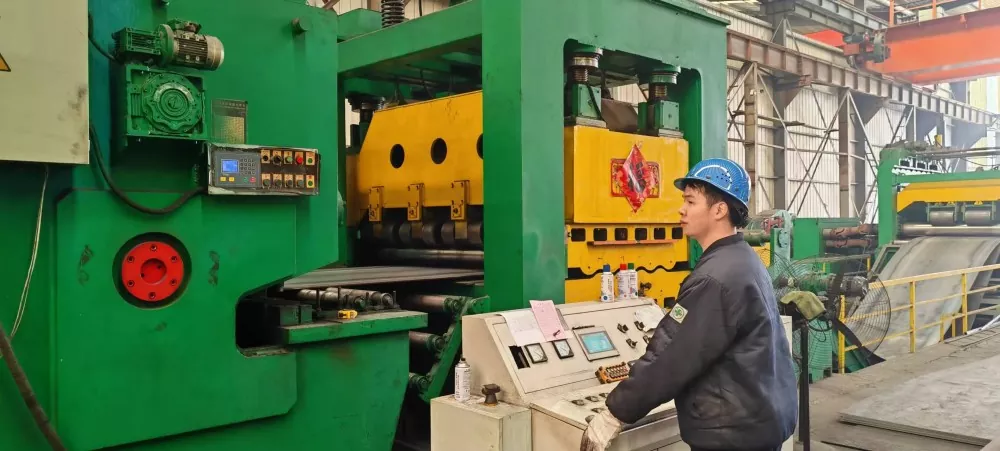

Equipped with a complete set of advanced industrial production equipment, our production line covers the whole manufacturing process of diamond checkered steel plates, including Hot Rolling Mill, Leveling Machine, professional cutting production lines and galvanizing processing lines. The full-process integrated production model effectively controls plate flatness, pattern uniformity, thickness tolerance and surface quality, ensuring every batch of anti slip diamond pattern checkered steel plate delivers stable and consistent mechanical performance and anti-slip effect.

With years of deep cultivation in the steel export industry, our anti slip diamond pattern checkered steel plate has been exported to 20+ countries and regions across Southeast Asia, the Middle East, Europe and other markets.

Surface Condition Options

Hot Rolled Bare: The standard condition. Dark oxide layer from the rolling process. Economical, adequate for indoor structural use, provides some corrosion resistance during transit. If you're painting or coating later, this is fine.

Pickled and Oiled: Acid bath removes the mill scale, oil coating prevents flash rust. Cleaner surface, better for welding or painting prep. Costs more, but saves you shop time.

Hot-Dip Galvanized: Zinc coating applied after rolling. Best for outdoor, coastal, or high-humidity environments. Zinc layer typically ≥65μm. Pattern remains visible and functional after galvanizing.

Oiled Only: Light oil applied to bare surface for short-term corrosion protection during shipping and storage.

How to select steel plates based on patterns, thickness and surface texture

Pattern selection:

Diamond: all-around traction, good for general flooring and walkways. Traction in all directions.

Lentil: directional grip. Often used on stairs and ramps where the primary movement is in one direction.

Round bean: lighter-duty applications, often decorative but still functional.

Thickness selection:

3–4mm: light pedestrian traffic, interior walkways, decorative applications

5–6mm: standard industrial flooring, forklift traffic, moderate loads

8–10mm: heavy equipment access, truck beds, loading docks, high-traffic areas

12–25mm: extreme heavy-duty applications, mining equipment, ship decks

Surface selection:

Bare: indoor use, painted or coated after installation

Pickled and oiled: welding or painting prep, cleaner surface

Galvanized: outdoor, coastal, high-humidity, or chemical exposure

Our Certifications

Sanhe Steel's anti slip diamond pattern checkered steel plates are manufactured and supplied under strict quality management systems:

ISO 9001:2015 — Quality management system certification, IQNET international mutual recognition

CE Certification (EU CPR 305/2011) — Certificate No. 1029-CPR-CN24/00003066, issued by SGS

ISO 14001:2015 — Environmental management system certification

ISO 45001:2018 — Occupational health and safety management system certification

CNAS Laboratory Accreditation — Registration No. L5624, in-house testing capability

All checkered plates comply with GB/T 3277, ASTM A786, and JIS G3101 standards.

Quality Warranty

Sanhe Steel provides a comprehensive quality guarantee for all anti slip diamond pattern checkered steel plates:

Material Defect Warranty: 12 months from the date of shipment against chemical composition and mechanical properties non-conformance

Pattern Integrity Warranty: 12 months against abnormal pattern wear, flattening, or peeling under normal service conditions

Dimensional Accuracy Warranty: Full replacement or rework for dimensional non-conformance caused by processing errors

Documentation: Full MTC (Mill Test Certificate) provided per heat

Third-Party Inspection: SGS/BV inspection reports available upon request

FAQ

Q1: Does the pattern affect strength?

A1: Yes, anti slip diamond pattern checkered steel plate has about 15–30% higher bending resistance than flat plate of the same base thickness. The raised pattern adds stiffness.

Q2: Can you galvanize checkered plate?

A2: Yes. We offer hot-dip galvanizing on request. The pattern remains visible and functional after galvanizing.

Q3: What's the lead time of checkered plate?

A3: Typically 7-15 days for standard sizes. Custom processing or non-standard dimensions may add time.

Q4: Is galvanized checkered plate more slippery than bare steel plate?

A4: The galvanized smooth coating slightly reduces friction.

Q5: Do I need to install the diamond checkered plate in a specific direction for better anti-slip performance?

A5: Yes. For optimal anti-slip effect, install the diamond pattern facing the main walking and rolling direction. Correct installation direction greatly reduces slipping risks under wet or muddy conditions and prolongs the service life of the plate surface.
